Bootlace Ferrules Terminals E Type

Short Description:

LILIAN core end terminal also named bootlace ferrule and crimp ferrule,they are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.0.75mm2 crimp ferrule especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices.No breakage of wire strands when wire is bent, under stress or in a vibration environment.Bootlace ferrule designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.bootlace ferrule disconnect is a kind of accessory for electrical connections, 0.75mm2 crimp ferrule can be crimped on cable/wire/ electrical equipment. A wide range of premium quality lugs we can supply,and satisfy your different demands.

Send email to us

Product Detail

Product Tags

Material: Tin plated copper,PVC or NYLON

Colour: White,Orange,Blue,Red,Yellow,Black,Gray,Green,Plam,Lvory

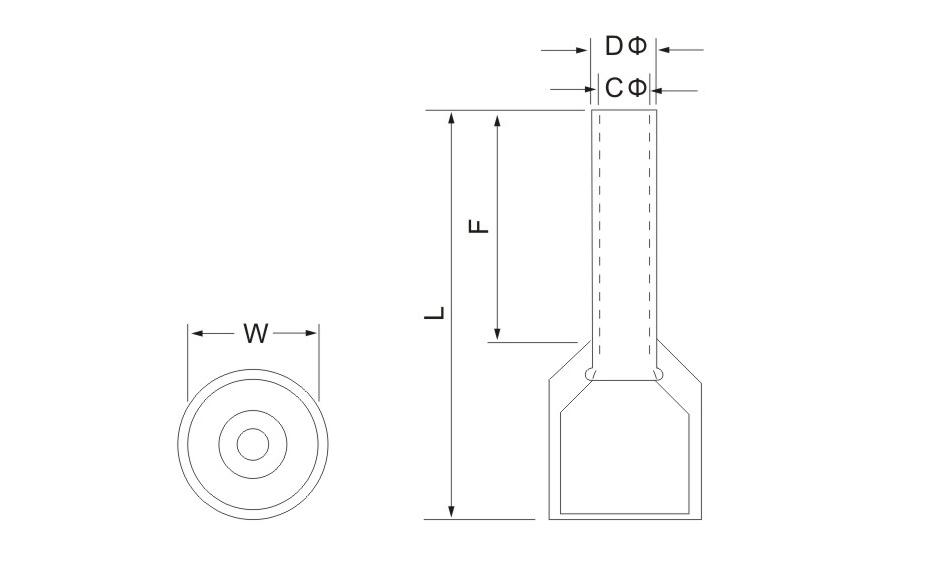

ITEM NO.	DIMENSION (MM)					WIRE SIZE		COLOUR	IMPRESSION TOOL
	C	D	F	L	W	A.W.G	mm²
E0306	0.8	1.1	6	10	1.9	24	0.34
E0308			8	12
E0505	1.0	1.3	5	11	2.6	22	0.5	White Orange	0.5 caliber tongs
E0506			6	12
E0508			8	14
E0510			10	16
E0512			12	18
E7506	1.2	1.5	6	12.3	2.8	20	0.75	Blue White	0.75 caliber tongs
E7508			8	14.3
E7510			10	16.3
E7512			12	18.3
E7518			18	24.3
E1006	1.4	1.7	6	12.3	3	18	1.0	Red Yellow	1.0 caliber tongs
E1008			8	14.3
E1010			10	16.3
E1012			12	18.3
E1018			18	24.3
E1508	1.7	2.0	8	14.3	3.5	16	1.5	Black Red	1.5 caliber tongs
E1510			10	16.3
E1512			12	18.3
E1515			15	21.3
E1518			18	24.3
E2508	2.3	2.6	8	15.4	4	14	2.5	Gray Blue	2.5 caliber tongs
E2510			10	17.4
E2512			12	18.4
E2518			18	25.1
E2525			25	32.4
E4009	2.8	3.2	9	16.4	4.5	12	4	Orange Gray	4.0caliber tongs
E4010			10	17.4
E4012			12	19.4
E4018			18	25.4
E6012	3.5	3.9	12	20.5	6	10	6	Green Black	6.0 caliber tongs
E6018			18	26.5
E10-12	4.5	4.9	12	22	7.5	8	10	Plam Lvory	10caliber tongs
E10-18			18	26
E16-12	5.8	6.2	12	22	8.7	6	16	Lvory Green	16 caliber tongs
E16-18			18	28
E25-12	7.5	7.9	12	24	11	4	25	Black Plam	25 caliber tongs
E25-15			15	27
E25-16			16	28
E25-18			18	30
E25-22			22	34
E35-16	8..3	8.7	16	30	12.5	2	35	Red Lvory	35 caliber tongs
E35-18			18	32
E35-22			22	36
E35-25			25	39
E50-12	10.3	10.9	12	28	15	1/0	50	Blue Green	50 caliber tongs
E50-20			20	36
E50-25			25	41
E70-20	13.5	14.3	20	37	16	2/0	70	Yellow	70 caliber tongs
E70-25			25	42
E70-27			27	44
E95-25	14.5	15.3	25	44	18.5	3/0	95	Red	95 caliber tongs
E120-27	16.5	17.5	27	47.6	20.3	4/0	120	Blue	120 caliber tongs
E120-32			32	52.6
E150-25	19.6	20.6	25	50.6	23.4	250/300MCM	150	Yellow	150 caliber tongs
E150-27			27	52.6
E150-32			32	57.6
