C45N Pin Spade Terminal For C45

Short Description:

LILIAN copper lugs made by T2 pure copper tube with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.


Product Detail

Product Tags

Material

Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.

Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.



a

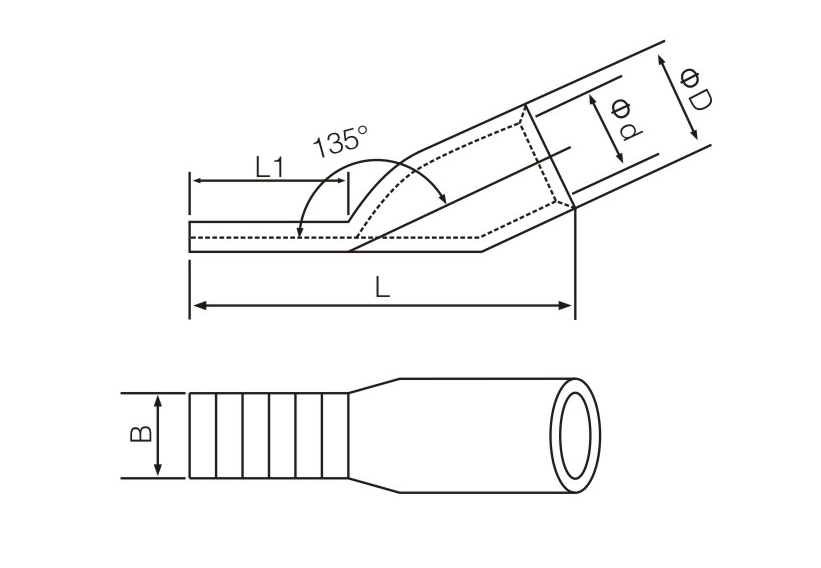

ITEM NO.

Dimension(mm)

B

L

L1

ΦD

Φd

C45N1.5

4.7

22

10

3.5

2.1

C45N2

5.5

22

10

4

2.6

C45N4

6.7

22

10

4.8

3.4

C45N6

7

27

10

5.9

4

C45N10

7

33

13

6.7

5.1

C45N16

7

36

13

8.1

6

C45N25

7

37

13

9

7

C45N35

7

39

13

10.6

8.3

C45N50

7

43.5

13

12.5

9.8

C45N70

7

47

13

14.7

11.9

lnstallation Precautions

1.The screw must be tightened.

2.The cable and copper lug must be inserted in place and pressed with crimping tools.

Awg Copper Tube Terminals (1)
Awg Copper Tube Terminals (4)
Awg Copper Tube Terminals (2)
Awg Copper Tube Terminals (3)

FAQ

1.Q:How about the certificates?
A:ISO9001,CE,ROHS,TUL.UL
2.What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
