Cl-2H copper tube cable lug with 2 holes

Short Description:

LILIAN copper lugs made by T2 pure copper tube with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.

Send email to us

Product Detail

Product Tags

Material

Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

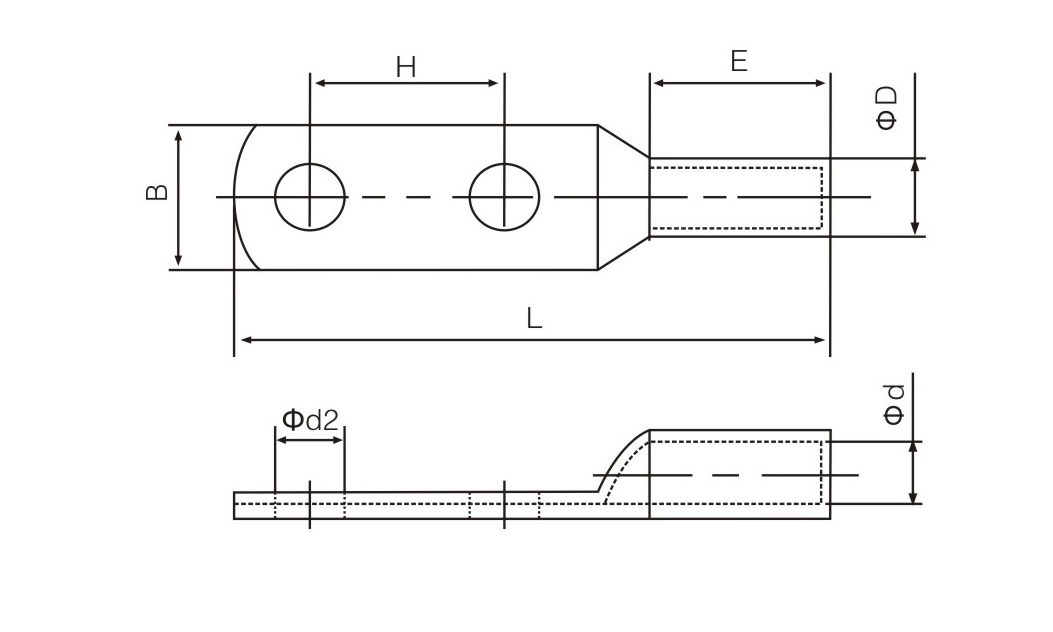

ITEM NO.	Dimension(mm)
ITEM NO.	Φd2	B	L	ΦD	Φd	E	H
CL14-2H-6	6.4	13	117.5	8.8	5.8	28.5	45
CL22-2H-8	8.4	16	119.2	11.3	7.7	28.5
CL38-2H-10	10.5	18.3	120	12.4	9.8	31.7
CL38-2H-12	13	18.3	120	12.4	9.8	31.7
CL60-2H-10	10.5	20.5	130	14	11	40
CL60-2H-12	13	20.5	130	14	11
CL70-2H-10	10.5	21.4	130	15	12
CL70-2H-12	13	21.4	130	15	12
CL80-2H-12	13	23.2	130	16	13
CL100-2H-12	13	26	132	18	14	42
CL125-2H-12	13	29	135	20	16	42
CL150-2H-12	13	31	150	22	17	50
CL180-2H-12	13	33	150	23	18.2	50
CL200-2H-12	13	37	150	26	20	52.5
CL250-2H-12	13	40	150	28	22	50
CL325-2H-12	13	46	180	32	25	68
CL400-2H-12	13	54	180	37	30	60
CL500-2H-12	13	57.5	180	40	31	60
B-CL14-2H-6	6.4	13	117.5	8.3	5.8	28.5
B-CL22-2H-8	8.4	16	119.2	10.7	7.7	28.5
B-CL38-2H-10	10.5	17.5	120	11.9	9.8	31.7
B-CL38-2H-12	13	17.5	120	11.9	9.8	31.7
B-CL60-2H-10	10.5	19.5	130	13.5	11	40
B-CL60-2H-12	13	19.5	130	13.5	11
B-CL70-2H-10	10.5	21.4	130	14.5	12
B-CL70-2H-12	13	21.4	130	14.5	12
B-CL80-2H-12	13	23.2	130	15.5	13	42
B-CL100-2H-12	13	26	132	17.3	14	42
B-CL125-2H-12	13	28	135	19.3	16	42
B-CL150-2H-12	13	31	150	21.1	17	50
B-CL180-2H-12	13	33	150	22.1	18.2
B-CL200-2H-12	13	36	150	24.9	20
B-CL250-2H-12	13	39	150	26.9	22
B-CL325-2H-12	13	45	180	30.7	25	68
B-CL400-2H-12	13	54	180	35.7	30	60
B-CL500-2H-12	13	56	180	38.4	31	60
