DIN 46235 STANDARD SIZE cable lug

Short Description:

LILIAN copper lugs made by T2 pure copper rod with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.

Send email to us

Product Detail

Product Tags

Material

Copper cable lugs are made of 99.9% pure copper rod with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.

Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

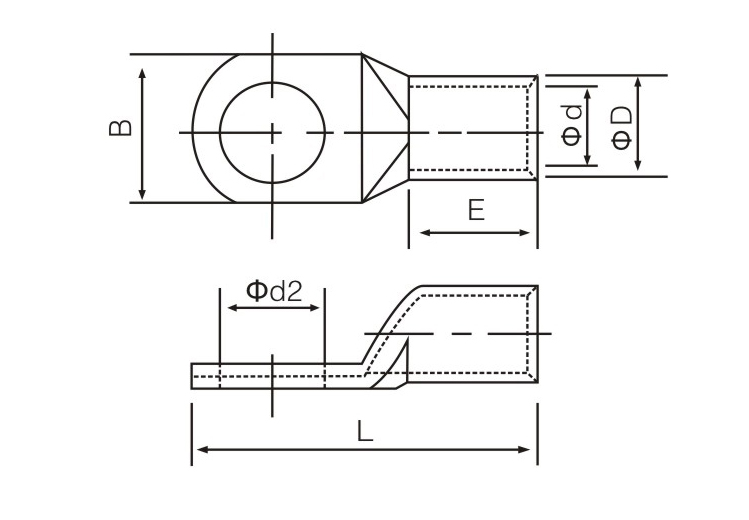

ITEM NO.	Dimension(mm)
ITEM NO.	Φd2	B	L	ΦD	Φd	E
DIN6-5	5.3	8.5	30.5	5.5	3.8	10
DIN6-6	6.4	8.5	31.5
DIN6-8	8.4	13	34
DIN10-5	5.3	9	34	6	4.5	10
DIN10-6	6.4	9	34.5
DIN10-8	8.4	13	37
DIN10-10	10.5	15	39
DIN16-6	6.4	13	43.5	8.5	5.5	20
DIN16-8	8.4	13	46
DIN16-10	10.5	17	48
DIN16-12	13	18	49
DIN25-6	6.4	14	45.5	10	7	20
DIN25-8	8.4	16	48
DIN25-10	10.5	17	50
DIN25-12	13	19	51
DIN35-6	6.4	17	49.5	12.5	8.2	20
DIN35-8	8.4	17	52
DIN35-10	10.5	19	54
DIN35-12	13	21	55
DIN35-14	15	21	56.5
DIN50-8	8.4	20	62	14.5	10	28
DIN50-10	10.5	22	64
DIN50-12	13	24	65
DIN50-14	15	24	66.5
DIN50-16	17	28	68
DIN70-8	8.4	24	65	16.5	11.5	28
DIN70-10	10.5	24	67
DIN70-12	13	24	68
DIN70-14	15	24	69.5
DIN70-16	17	30	71
DIN95-8	8.4	28	77	19	13.5	35
DIN95-10	10.5	28	77
DIN95-12	13	28	78
DIN95-14	15	28	79.5
DIN95-16	17	32	81
DIN120-20	10.5	30	85	21	15.5	35
DIN150-10	13	30	86
DIN150-12	15	30	88
DIN150-14	17	30	89
DIN150-16	21	38	91
DIN150-20	10.5	34	93	23.5	17	35
DIN185-10	13	34	94
DIN185-12	15	34	97
DIN185-14	17	34	97
DIN185-16	21	40	99
DIN185-20	10.5	37	97	25.5	19	40
DIN240-12	13	37	98
DIN240-14	15	37	101
DIN240-16	17	37	101
DIN240-20	21	40	103
DIN300-12	13	42	108	29	21.5	40
DIN300-14	15	42	111
DIN300-16	17	42	111
DIN300-20	21	45	113
DIN400-14	13	46	119	32	24.5	50
DIN400-16	15	46	119
DIN400-20	17	46	119
DIN500-16	21	46	122
DIN500-20	15	55	140	38.5	27.5	70
DIN625-16	17	55	140
DIN625-20	21	55	140
DIN800-16	17	60	150	42	31	70
DIN800-20	21	60	150	42	31	70
DIN1000-16	17	64	160	44	34.5	80
DIN1000-20	21	64	160	44	34.5	80
