DT Copper Lugs With Long Barrel

Short Description:

LILIAN copper lugs made by T2 pure copper rod with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.

Send email to us

Product Detail

Product Tags

Material

Copper cable lugs are made of 99.9% pure copper rod with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.

Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

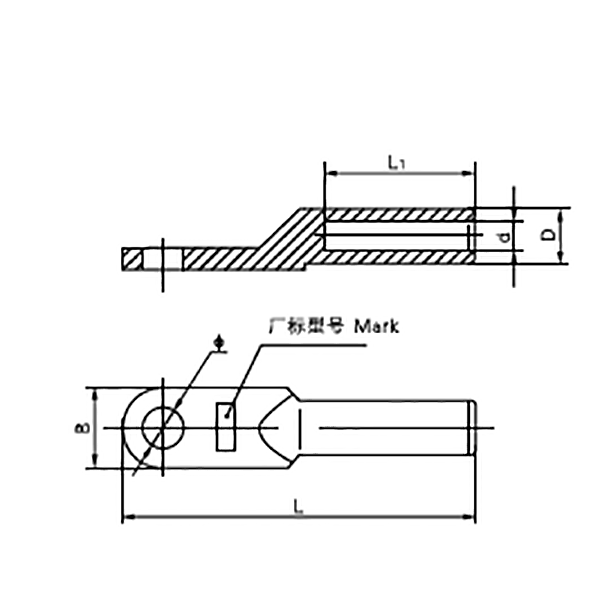

Cat.No.	Dimensions(mm)
Cat.No.	ø	d	D	B	L1	L
DT-10	8.5	5.5	9	16	28	66
DT-16	8.5	6	10	16	30	67
DT-25	8.5	7	11	18	34	70
DT-35	10.5	8.7	12	20	36	79
DT-50	12.5	9.8	14	23	40	87
DT-70	10.5	12	16	26	44	95
DT-95	12.5	13	18	28	46	105
DT-120	14.5	15	20	30	54	112
DT-150	14.5	16	22	34	50	118
DT-185	16.5	18	24	38	55	125
DT-240	16.5	20.5	27	42	60	136
DT-300	21	23	30	48	66	160
DT-400	21	26	34	54	70	165
DT-500	21	29	38	64	77	190
DT-630	/	34	45	80	85	220
DT-800	/	38	50	100	95	260
Remark:					*(Standard type)
