Dt-G Copper Lugs With Long Barrel
Material
Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
|

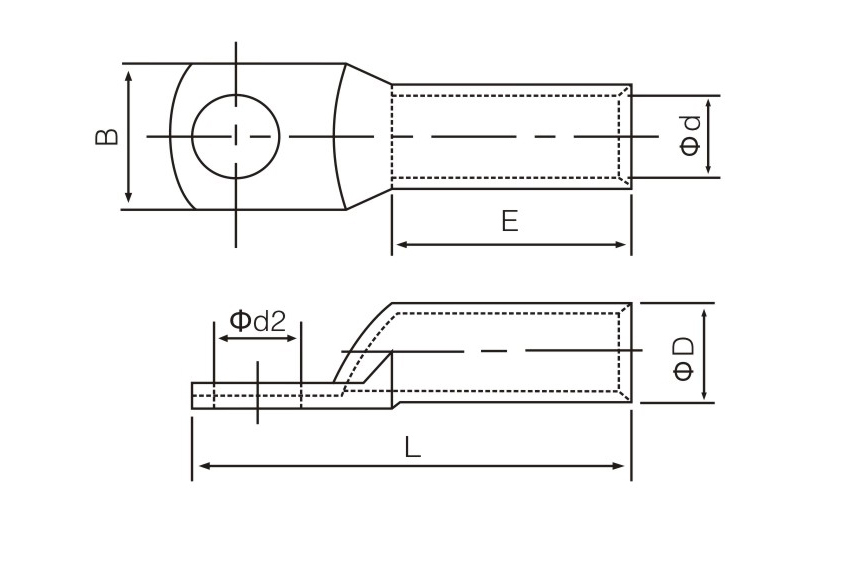

ITEM NO. |
Dimension(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
|
|
DT1.5-5 |
5.2 |
8 |
23 |
4 |
2.2 |
10 |
|
DT2.5-4 |
4.2 |
8 |
27 |
4.5 |
2.9 |
13 |
|
DT2.5-5 |
5.2 |
8 |
27 |
|||
|
DT2.5-6 |
6.4 |
10 |
27 |
|||
|
DT4-5 |
5.2 |
10 |
28 |
5.2 |
3.6 |
|
|
DT4-6 |
6.4 |
10 |
28 |
|||
|
DT6-5 |
5.2 |
10 |
35 |
6 |
4.2 |
17 |
|
DT6-6 |
6.4 |
10 |
35 |
|||
|
DT6-8 |
8.4 |
12 |
35 |
|||
|
DT10-6 |
6.4 |
12.4 |
36 |
7 |
5 |
17 |
|
DT10-8 |
8.4 |
12.4 |
36 |
|||
|
DT16-6 |
6.4 |
14 |
58 |
9 |
6 |
32 |
|
DT16-8 |
8.4 |
14 |
58 |
|||
|
DT25-6 |
6.4 |
15 |
58 |
10 |
7 |
32 |
|
DT25-8 |
8.4 |
15 |
58 |
|||
|
DT25-10 |
10.5 |
17.5 |
58 |
|||
|
DT35-6 |
6.4 |
17.1 |
62 |
12 |
9 |
36 |
|
DT35-8 |
8.4 |
17.1 |
62 |
|||
|
DT35-10 |
10.5 |
18 |
62 |
|||
|
DT50-8 |
8.4 |
20 |
72 |
14 |
10 |
40 |
|
DT50-10 |
10.5 |
20 |
72 |
|||
|
DT70-8 |
8.4 |
23 |
76 |
16 |
12 |
42 |
|
DT70-10 |
10.5 |
23 |
76 |
|||
|
DT70-12 |
13 |
23 |
76 |
|||
|
DT95-10 |
10.5 |
26 |
84 |
18 |
14 |
14 |
|
DT95-12 |
13 |
26 |
84 |
|||
|
DT120-12 |
13 |
30 |
90 |
21 |
16 |
46 |
|
DT120-16 |
17 |
30 |
90 |
|||
|
DT150-12 |
13 |
33 |
98 |
23 |
17 |
50 |
|
DT150-16 |
17 |
33 |
98 |
|||
|
DT185-12 |
13 |
36 |
101 |
25 |
19 |
52 |
|
DT185-16 |
17 |
36 |
101 |
|||
|
DT240-12 |
13 |
40 |
110 |
28 |
21.6 |
52 |
|
DT240-16 |
17 |
40 |
112 |
|||
|
DT240-20 |
21 |
40 |
112 |
|||
|
DT300-16 |
17 |
45 |
116 |
31 |
24 |
58 |
|
DT300-20 |
21 |
45 |
120 |
|||
|
DT400-16 |
17 |
52 |
126 |
36.5 |
28.5 |
66 |
|
DT400-20 |
21 |
52 |
131 |
|||
|
DT500-16 |
17 |
56 |
141 |
39 |
30.5 |
70 |
|
DT500-20 |
21 |
56 |
146 |
|||
|
DT630-20 |
21 |
65 |
168 |
45 |
35.5 |
80 |
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
