DTL-2 Bimetallic cable connected lug
Working temperature:Applied form -10℃ to 85℃。
Material:Nylon 66,94V-2 UL.
Feature:Flame-retardant(94V-2),heat-resistant,insulated well and not easy to age.
Usage: Self-locking cable ties which are easily assembled by hand or with pliers.
Colour:White,Black,nature standard color or other colour according to customer request.
We can do OEM according to the samples or drawings.
| ITEM NO. | LENGTH | W (MM) |
BUNDLE DIAMETER E(MM) |
MIN TENSILE STRENGTH | ||
| Inch | L(mm) | LBS | KGS | |||
| LL-3×60 | 2 3/8″ | 60 | 2.5 | 2-11 | 18 | 8 |
| LL-3×80 | 3 3/16″ | 80 | 2.5 | 2-16 | 18 | 8 |
| LL-3×100 | 4” | 100 | 2.5 | 2-22 | 18 | 8 |
| LL-3×120 | 4 3/4” | 120 | 2.5 | 2-30 | 18 | 8 |
| LL-3×150 | 6” | 150 | 2.5 | 2-35 | 18 | 8 |
| LL-3×160 | 6 1/4” | 160 | 2.5 | 2-40 | 18 | 8 |
| LL-3×200 | 8” | 200 | 2.5 | 3-50 | 18 | 8 |
| LL-3×250 | 10” | 250 | 3 | 3-65 | 18 | 8 |
| LL-3×300 | 12” | 300 | 3 | 3-80 | 18 | 8 |
| LL-4×100 | 4” | 100 | 3.5 | 3-22 | 40 | 18 |
| LL-4×120 | 4 3/4” | 120 | 3.5 | 3-30 | 40 | 18 |
| LL-4×150 | 6” | 150 | 3.5 | 3-35 | 40 | 18 |
| LL-4×160 | 6 1/4” | 160 | 3.5 | 3-40 | 40 | 18 |
| LL-4×180 | 7” | 180 | 3.5 | 3-42 | 40 | 18 |
| LL-4×200 | 8” | 200 | 3.5 | 3-50 | 40 | 18 |
| LL-4×220 | 8 5/8” | 220 | 3.5 | 3-58 | 40 | 18 |
| LL-4×250 | 10” | 250 | 3.5 | 3-65 | 40 | 18 |
| LL-4×280 | 11” | 280 | 3.5 | 3-70 | 40 | 18 |
| LL-4×300 | 12” | 300 | 3.5 | 3-80 | 40 | 18 |
| LL-4×370 | 14 1/2” | 370 | 3.5 | 3-102 | 40 | 18 |
| LL-5×120 | 4 3/4” | 120 | 4.6 | 3-24 | 50 | 22 |
| LL-5×150 | 6” | 150 | 4.6 | 3-35 | 50 | 22 |
| LL-5×180 | 7” | 180 | 4.6 | 3-42 | 50 | 22 |
| LL-5×200 | 8” | 200 | 4.6 | 3-50 | 50 | 22 |
| LL-5×250 | 10” | 250 | 4.6 | 3-65 | 50 | 22 |
| LL-5×280 | 11” | 280 | 4.6 | 3-70 | 50 | 22 |
| LL-5×300 | 12” | 300 | 4.6 | 3-82 | 50 | 22 |
| LL-5×350 | 14” | 350 | 4.6 | 3-90 | 50 | 22 |
| LL-5×380 | 15” | 380 | 4.7 | 3-102 | 50 | 22 |
| LL-5×400 | 16″ | 400 | 4.7 | 3-105 | 50 | 22 |
| LL-5×450 | 18″ | 450 | 4.7 | 3-130 | 50 | 22 |
| LL-5×500 | 20” | 500 | 4.7 | 3-150 | 50 | 22 |
| LL-5×550 | 22” | 550 | 4.7 | 3-160 | 50 | 22 |
| LL-8×150 | 6” | 150 | 6.8 | 3-33 | 85 | 38 |
| LL-8×180 | 7” | 180 | 6.8 | 3-42 | 85 | 38 |
| LL-8×200 | 8” | 200 | 6.8 | 3-50 | 85 | 38 |
| LL-8×250 | 10” | 250 | 7.5 | 4-63 | 120 | 55 |
| LL-8×300 | 12” | 300 | 7.5 | 4-82 | 120 | 55 |
| LL-8×350 | 14” | 350 | 7.5 | 4-90 | 120 | 55 |
| LL-8×370 | 14 1/2” | 370 | 7.5 | 4-98 | 120 | 55 |
| LL-8×400 | 16″ | 400 | 7.5 | 4-105 | 120 | 55 |
| LL-8×450 | 18″ | 450 | 7.5 | 4-118 | 120 | 55 |
| LL-8×500 | 20” | 500 | 7.5 | 4-150 | 120 | 55 |
| LL-8×550 | 22” | 550 | 7.5 | 4-160 | 120 | 55 |
| LL-8×750 | 30″ | 750 | 7.5 | 4-220 | 120 | 55 |
Description
LILIAN copper lugs made by T2 pure copper rod with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.
Material
Copper cable lugs are made of 99.9% pure copper rod with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
c
|

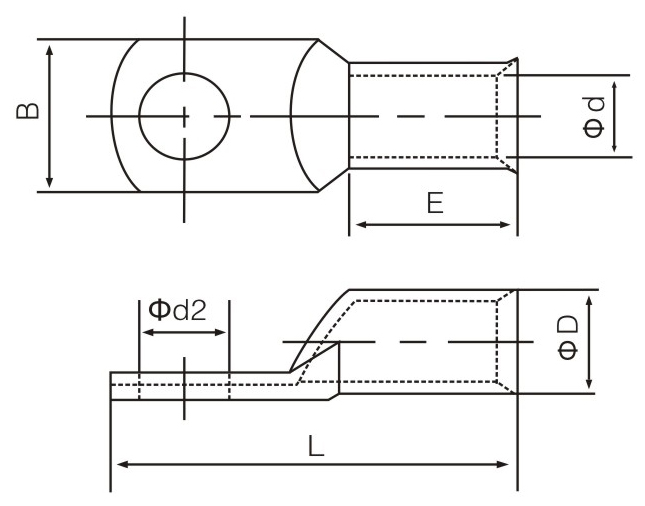

ITEM NO. |
Dimension(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
|
|
8#10 |
5.1 |
11.8 |
33.3 |
7.1 |
4.8 |
13 |
|
8*1/4 |
6.8 |
11.8 |
33.3 |
|||
|
8*5/16 |
8.3 |
11.8 |
33.3 |
|||
|
8*3/8 |
10.4 |
14.5 |
33.3 |
|||
|
8*1/2 |
13.1 |
17 |
33.3 |
|||
|
6#10 |
5.1 |
11.8 |
37.3 |
8.1 |
5.9 |
15 |
|
6*1/4 |
6.8 |
13.7 |
37.3 |
|||
|
6*5/16 |
8.3 |
13.7 |
37.3 |
|||
|
6*3/8 |
10.4 |
13.7 |
37.3 |
|||
|
6*1/2 |
13.1 |
17 |
37.3 |
|||
|
4*1/4 |
6.8 |
13.8 |
38.9 |
9.5 |
7.3 |
15.5 |
|
4*5/16 |
8.3 |
13.8 |
38.9 |
|||
|
4*3/8 |
10.4 |
14.5 |
38.9 |
|||
|
4*1/2 |
13.1 |
17 |
38.9 |
15 |
||
|
2*1/4 |
6.8 |
16.5 |
41.1 |
11.1 |
8.5 |
16 |
|
2*5/16 |
8.3 |
16.5 |
41.1 |
|||
|
2*3/8 |
10.4 |
16.5 |
41.1 |
|||
|
2*1/2 |
13.1 |
17 |
41.1 |
15.3 |
||
|
1*1/4 |
6.8 |
16.4 |
43.6 |
11.7 |
9.1 |
16 |
|
1*5/16 |
8.3 |
16.4 |
43.6 |
|||
|
1*3/8 |
10.4 |
17.1 |
43.6 |
|||
|
1*1/2 |
13.1 |
19.1 |
43.6 |
|||
|
1/0*1/4 |
6.8 |
18.4 |
46.8 |
13 |
10.4 |
19 |
|
1/0*5/16 |
8.3 |
18.4 |
46.8 |
|||
|
1/0*3/8 |
10.4 |
18.4 |
46.8 |
|||
|
1/0*1/2 |
13.1 |
21 |
46.8 |
|||
|
2/0*1/4 |
6.8 |
21 |
52.4 |
14.2 |
11.7 |
22 |
|
2/0*5/16 |
8.3 |
21 |
52.4 |
|||
|
2/0*3/8 |
10.4 |
21 |
52.4 |
|||
|
2/0*1/2 |
13.1 |
21 |
52.4 |
21 |
||
|
3/0*5/16 |
8.3 |
23.1 |
55.9 |
15.7 |
13 |
22.5 |
|
3/0 |
10.4 |
23.1 |
55.9 |
|||
|
3/0*1/2 |
13.1 |
23.1 |
55.9 |
|||
|
4/0*5/16 |
8.3 |
25.8 |
60.5 |
17.2 |
14.2 |
24 |
|
4/0*3/8 |
10.4 |
25.8 |
60.5 |
|||
|
4/0*1/2 |
13.1 |
25.8 |
60.5 |
|||
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
FAQ
1.Q：could i put my own logo on it?
A:Sure,customers’ logo can be printed or put on the items.
2.Q:How about the certificates?
A:ISO9001,CE，ROHS,TUL.UL
3.What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
