Electrical Wire Crimp Connector Fdfn&mdfn Type
Material of electrical wire crimp connector
Terminal material:Pure Copper or brass
Insulating material:Nylon 66 insulated cover
Plating:Tin Plated
shrink Temp 150ºC
Operating Temp -10ºC–105ºC
|

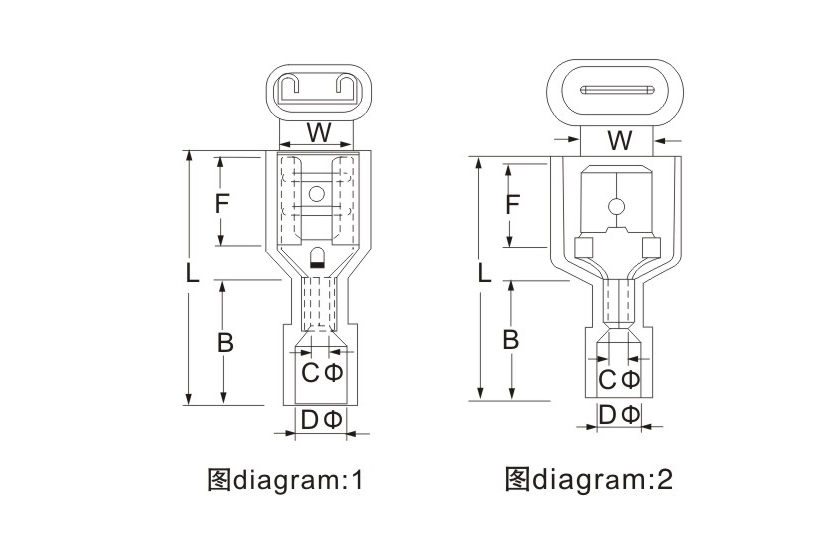

ITEM NO. |
DIMENSION(MM) |
COLOUR |
|||||
|
B |
C |
D |
F |
L |
W |
||
|
FDFN 1.25-250 |
11 |
1.7 |
4 |
7.3 |
22 |
6.6 |
Red |
|
MDFN 1.25-250 |
11 |
7.7 |
23 |
6.35 |
|||
|
FDFN 2-250 |
11 |
2.3 |
4.5 |
7.3 |
22 |
6.6 |
Blue |
|
MDFN 2-250 |
11 |
7.7 |
24 |
6.35 |
|||
|
FDFN 5.5-250 |
13 |
3.4 |
6.3 |
7.3 |
24 |
6.6 |
Yellow |
|
MDFN 5.5-250 |
13 |
7.7 |
25 |
6.35 |
|||
what products we are producing
How to use the insulated terminal
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
