Gty Copper Connect Tube/copper cable connector /middle connector
Material
Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
|
ITEM NO. |

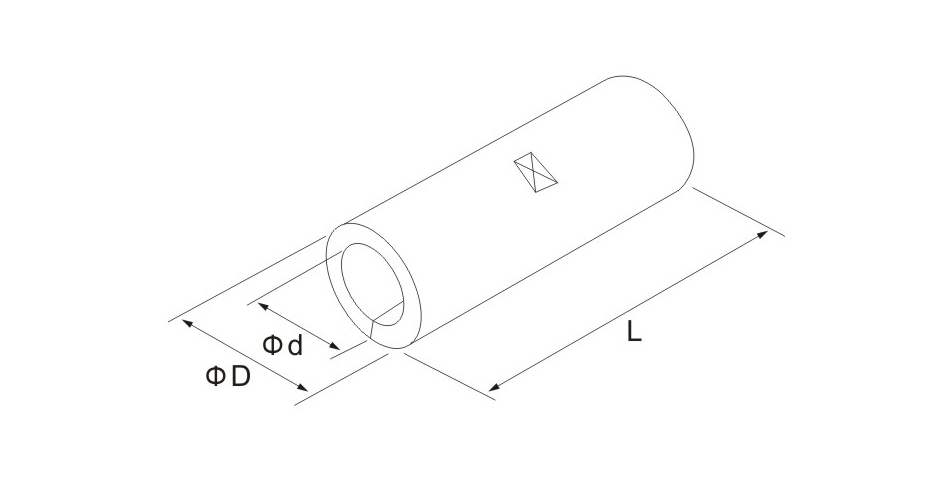

Dimension(mm) |
||
|
L |
ΦD |
Φd |
|
|
L1.5 |
20 |
3.7 |
1.8 |
|
L2.5 |
20 |
4 |
2.4 |
|
L4 |
20 |
4.8 |
3.1 |
|
L6 |
20 |
5.5 |
3.8 |
|
L10 |
20 |
6.2 |
4.5 |
|
L16 |
40 |
7.1 |
5.4 |
|
L25 |
45 |
8.8 |
6.8 |
|
L35 |
45 |
10.6 |
8.2 |
|
L50 |
45 |
12.4 |
9.5 |
|
L70 |
50 |
14.7 |
11.2 |
|
L95 |
50 |
17.4 |
13.5 |
|
L120 |
55 |
19.4 |
15 |
|
L150 |
60 |
21.2 |
16.5 |
|
L185 |
65 |
23.5 |
18.5 |
|
L240 |
80 |
26.5 |
21 |
|
L300 |
85 |
30 |
23.5 |
|
L400 |
90 |
36.5 |
28.5 |
|
L500 |
100 |
39 |
30 |
|
L550 |
100 |
41.4 |
31.7 |
|
L630 |
110 |
45 |
35 |
|
L800 |
150 |
50.6 |
39 |
|
L1000 |
170 |
56.2 |
43 |
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
FAQ
1. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
2. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
