Heat Shrink Butt Connectors BHT Type

Short Description:

LILIANHeat shrink butt connectors insulated crimp terminals BHT type are electrical connectors used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimpe.Heat shrink butt connectors insulated crimp terminals BHT type especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment. Twin ferrule designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.Wire terminal lugs disconnect is a kind of accessory for electrical connections, which can be crimped on cable/wire/ electrical equipment. A wide range of premium quality lugs we can supply,and satisfy your different demands.


Product Detail

Product Tags

Material of heat shrink butt

Crimp terminal material: Pure Copper

Insulating material: heat Shrinkable tube

Plating:Tin Plated

Shrink temperature: 150ºC

Operating temperature:-10ºC–105ºC

wps_doc_0

what products we are producing

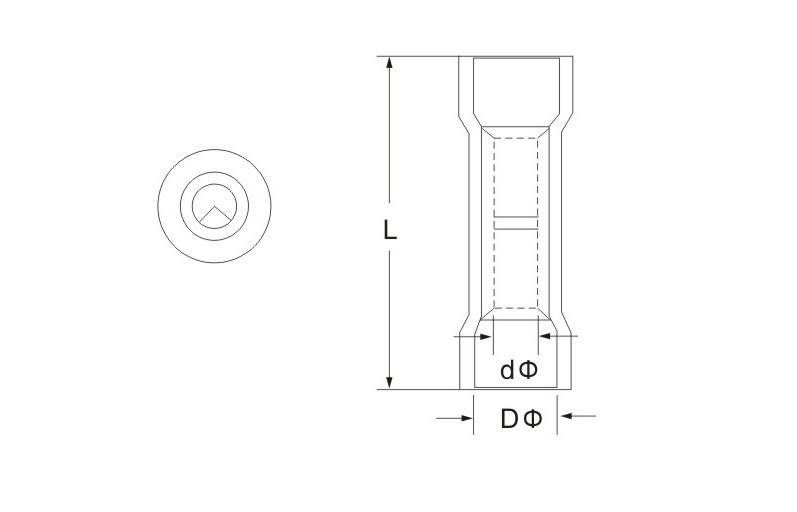

ITEM NO.

CONDUCTOR SECTION

DIMENSION(MM)

MAX.CURRENT

COLOUR

A.W.G.

mm2

d2

L

BHT 1.25

22-16

0.5-1.5

1.7

34

19A

Red

BHT 2

16-14

1.5-2.5

2.3

34

27A

Blue

BHT 5

12-10

4-6

3.4

41

48A

Yellow

wps_doc_1

How to use the insulated terminal

wps_doc_2
wps_doc_3

lnstallation Precautions

1.The screw must be tightened.

2.The cable and copper lug must be inserted in place and pressed with crimping tools.

wps_doc_4
