Insulated Male&female Terminals MDD, FDD, PBDD Type
Material of crimp ring terminal
Tin plated copper,
PVC insulated cover
|

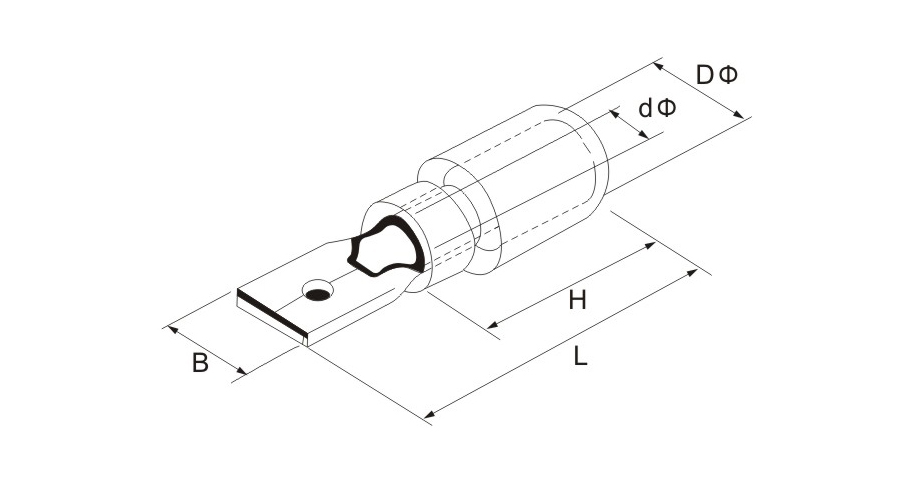

ITEM NO. |
NAME TAB (MM) |
MATERIAL THICKNESS (MM) |
DIMENSION(MM) |
COLOUR |
SPECIFICATION |
||||
|
B |
D |
d |
L |
H |
|||||
|
MDD 1.25-110(5) |
0.5X2.8 |
0.5 |
2.8 |
4.3 |
1.7 |
17.7 |
10.0 |
Red |
Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=10A |
|
MDD 1.25-110(8) |
0.8X2.8 |
0.8 |
2.8 |
17.7 |
|||||
|
MDD 1.25-187(5) |
0.5X4.75 |
0.5 |
4.75 |
20.0 |
|||||
|
MDD 1.25-187(8) |
0.8X4.75 |
0.8 |
4.75 |
20.0 |
|||||
|
MDD 1.25-250 |
0.8X6.35 |
0.4 |
6.35 |
21.0 |
|||||
|
MDD 2-110(5) |
0.5X2.8 |
0.5 |
2.8 |
4.3 |
2.3 |
17.7 |
10.0 |
Blue |
Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=15A |
|
MDD 2-110(8) |
0.8X2.8 |
0.8 |
2.8 |
17.7 |
|||||
|
MDD 2-187(5) |
0.5X4.75 |
0.5 |
4.75 |
20.0 |
|||||
|
MDD 2-187(8) |
0.8X4.75 |
0.8 |
4.75 |
20.0 |
|||||
|
MDD 2-250 |
0.8X6.35 |
0.4 |
6.35 |
21.0 |
|||||
|
MDD 5.5-187 |
0.5X4.75 |
0.5 |
4.75 |
5.7 |
3.4 |
23.0 |
13.0 |
Yellow |
Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=24A |
|
MDD 5.5-250 |
0.8X6.35 |
0.4 |
6.35 |
25.0 |
|||||
|

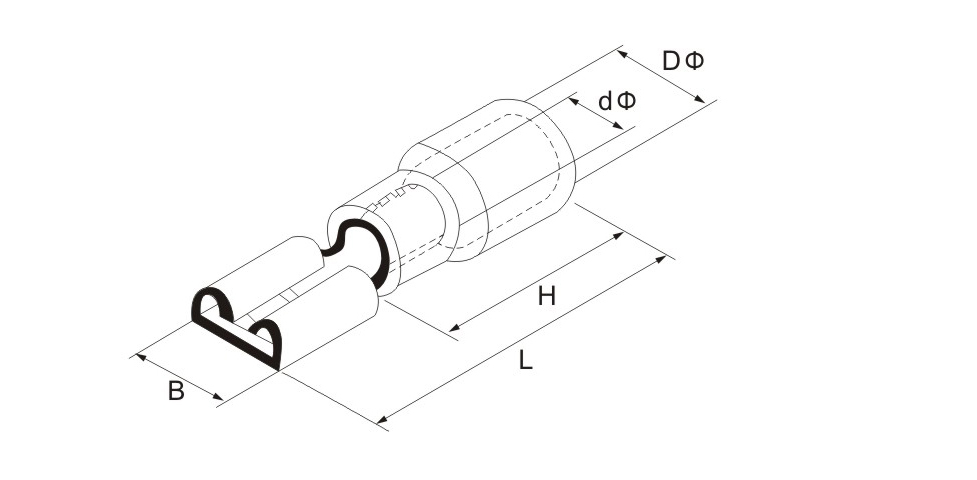

ITEM NO. |
NAME TAB (MM) |
MATERIAL THICKNESS (MM) |
DIMENSION(MM) |
COLOUR |
SPECIFICATION |
||||
|
B |
D |
d |
L |
H |
|||||
|
FDD 1.25-110(5) |
0.5X2.8 |
0.3 |
3.8 |
3.8 |
1.7 |
19.0 |
10.0 |
Red |
Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=19A |
|
FDD 1.25-110(8) |
0.8X2.8 |
0.3 |
3.8 |
19.0 |
|||||
|
FDD 1.25-187(5) |
0.5X4.75 |
0.35 |
5.6 |
19.0 |
|||||
|
FDD 1.25-187(8) |
0.8X4.75 |
0.35 |
5.6 |
19.0 |
|||||
|
FDD 1.25-205 |
0.5X5.2 |
0.35 |
6.5 |
20.0 |
|||||
|
FDD 1.25-250 |
0.8X6.35 |
0.4 |
7.4 |
21.0 |
|||||
|
FDD 2-110(5) |
0.5X2.8 |
0.3 |
3.8 |
4.3 |
2.3 |
19.0 |
10.0 |
Blue |
Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=15A |
|
FDD 2-110(8) |
0.8X2.8 |
0.3 |
3.8 |
19.0 |
|||||
|
FDD 2-187(5) |
0.5X4.75 |
0.35 |
5.6 |
19.0 |
|||||
|
FDD 2-187(8) |
0.8X4.75 |
0.35 |
5.6 |
19.0 |
|||||
|
FDD 2-205 |
0.5X5.2 |
0.35 |
6.5 |
20.0 |
|||||
|
FDD 2-250 |
0.8X6.35 |
0.4 |
7.4 |
21.0 |
|||||
|
FDD 2-312 |
0.8X8.0 |
0.4 |
9.0 |
23.0 |
|||||
|
FDD 5.5-187 |
0.5X4.75 |
0.4 |
5.6 |
3.4 |
5.7 |
23.0 |
14.0 |
Yellow |
Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=24A |
|
FDD 5.5-250 |
0.8X6.35 |
0.4 |
7.4 |
25.0 |
|||||
|
FDD 5.5-312 |
0.8X8.0 |
0.5 |
9.0 |
27.0 |
|||||
|
FDD 5.5-375 |
1.2×9.4 |
0.5 |
10.9 |
29.6 |
|||||
|
ITEM NO. |
NAME TAB (MM) |
MATERIAL THICKNESS (MM) |
DIMENSION(MM) |
COLOUR |
SPECIFICATION |
|||||
|
B |
B1 |
D |
d |
L |
H |
|||||
|
PBDD 1.25-250 |
0.8X6.35 |
0.4 |
7.4 |
6.35 |
3.8 |
1.7 |
21.5 |
10.0 |
Red |
Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=10A |
|
PBDD 2-250 |
0.8X6.35 |
0.4 |
7.4 |
6.35 |
4.3 |
2.3 |
21.5 |
10.0 |
Blue |
Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=15A |
|
PBDD 5.5-250 |
0.8X6.35 |
0.4 |
7.4 |
6.3 |
5.7 |
3.4 |
25.0 |
13.0 |
Yellow |
Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=24A |
what products we are producing
How to use the insulated terminal
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
