Insulated Ring Terminal RV Type

Short Description:

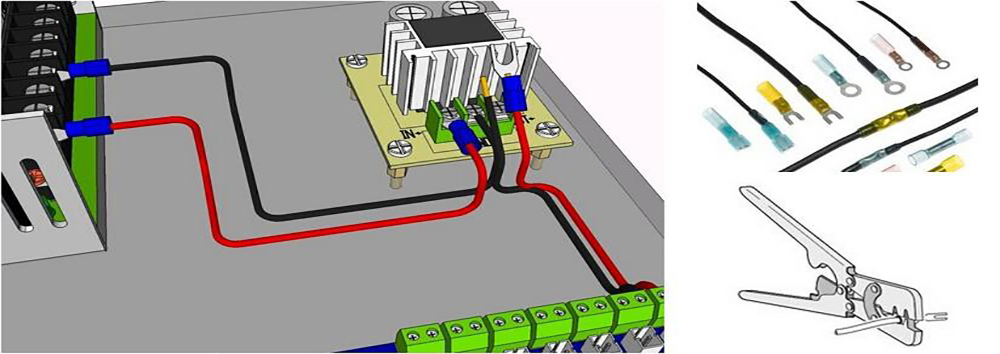

LILIAN insulated ring terminal are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Crimp ring terminal are especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment.Ring terminal designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.

Send email to us

Product Detail

Product Tags

Material of crimp ring terminal

Tin plated copper,

PVC insulated cover

ITEM NO.	STUD SIZE	DIA.OF BOLT	DIMENSION(MM)					COLOR	SPECIFICATION

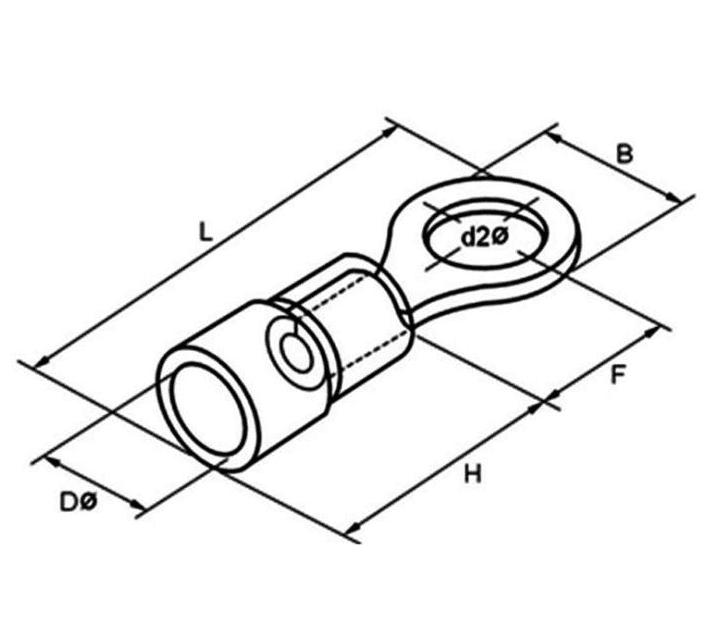

ITEM NO.	STUD SIZE	d2(mm)	B	D	F	H	L	COLOR	SPECIFICATION
RV 1.25-3	#4	3.2	5.7	4.3	4.95	10	17.8	Red	Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=19A Thickness: 0.7mm
RV 1.25-3.5S	#6	3.7	5.7		4.95		17.8
RV 1.25-3.5M	#6	3.7	6.6		6.3		20.1
RV 1.25-3.5L	#6	3.7	7.2		7.0		21.5
RV 1.25-4S	#8	4.3	6.6		6.3		20.1
RV 1.25-4L	#8	4.3	8.0		7.0		21.5
RV 1.25-5S	#10	5.3	8.0		7.0		21.5
RV 1.25-5L	#10	5.3	9.5		8.0		23.0
RV 1.25-5LL	#10	5.3	11.6		11.1		27.5
RV 1.25-6S	1/4	6.5	9.5		8.0		23.0
RV 1.25-6	1/4	6.5	11.6		11.1		27.5
RV 1.25-8	5/16	8.5	11.6		11.1		27.5
RV 1.25-10	3/8	10.5	13.6		13.9		31.6
RV 1.25-10L	3/8	10.5	19.2		16.0		35.0
RV 1.25-12	1/2	13.0	19.2		16.0		35.0
RV 2-3	#4	3.2	6.6	4.9	4.3	10	17.8	Blue	Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=27A Thickness: 0.8mm
RV 2-3.5S	#6	3.7	6.6		4.3		17.8
RV 2-3.5M	#6	3.7	6.6		7.0		21.0
RV 2-3.5L	#6	3.7	8.5		7.75		22.5
RV 2-4S	#8	4.3	6.6		7.00		21.0
RV 2-4L	#8	4.3	8.5		7.75		22.5
RV 2-5S	#10	5.3	8.5		7.75		22.5
RV 2-5L	#10	5.3	9.5		7.25		22.5
RV 2-6S	1/4	6.5	9.5		7.25		22.5
RV 2-6	1/4	6.5	12.0		11.0		27.6
RV 2-8	5/16	8.5	12.0		11.0		27.6
RV 2-10	3/8	10.5	13.6		13.9		30.2
RV 2-10L	3/8	13	19.2		16.0		35.0
RV 2-12	1/2	13.0	19.2		16.0		35.0
RV 3.5-4	#8	4.3	8.0	6.2	7.7	12.5	24.5	Black	Conductor section:2.5-4mm2 A.W.G.: 14-12 Max Current:I max.=37A Thickness: 1.0mm
RV 3.5-5S	#10	5.3	8.0		7.7		24.5
RV 3.5-5L	#10	5.3	12.0		7.7		27.9
RV 3.5-6	1/4	6.5	12.0		7.7		27.9
RV 3.5-8	5/16	8.5	15.0		13.5		32.0
RV 3.5-10	3/8	10.5	15.0		13.6		32.0
RV 3.5-12	1/2	13.0	19.2		16.0		38.1
RV 5.5-3.5	#6	3.7	7.2	6.7	5.9	12.5	21.4	Yellow	Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=48A Thickness: 1.0mm
RV 5.5-4S	#8	4.3	7.2		5.9		21.4
RV 5.5-4L	#8	4.3	9.5		8.3		25.5
RV 5.5-5	#10	5.3	9.5		8.3		25.5
RV 5.5-6	1/4	6.5	12.0		13.0		31.5
RV 5.5-8	5/16	8.5	15.0		13.7		33.7
RV 5.5-10	3/8	10.5	15.0		13.7		33.7
RV 5.5-12	1/2	13.0	19.2		16.0		33.7
