JGK/SC Copper Lugs With Checking Hole

Short Description:

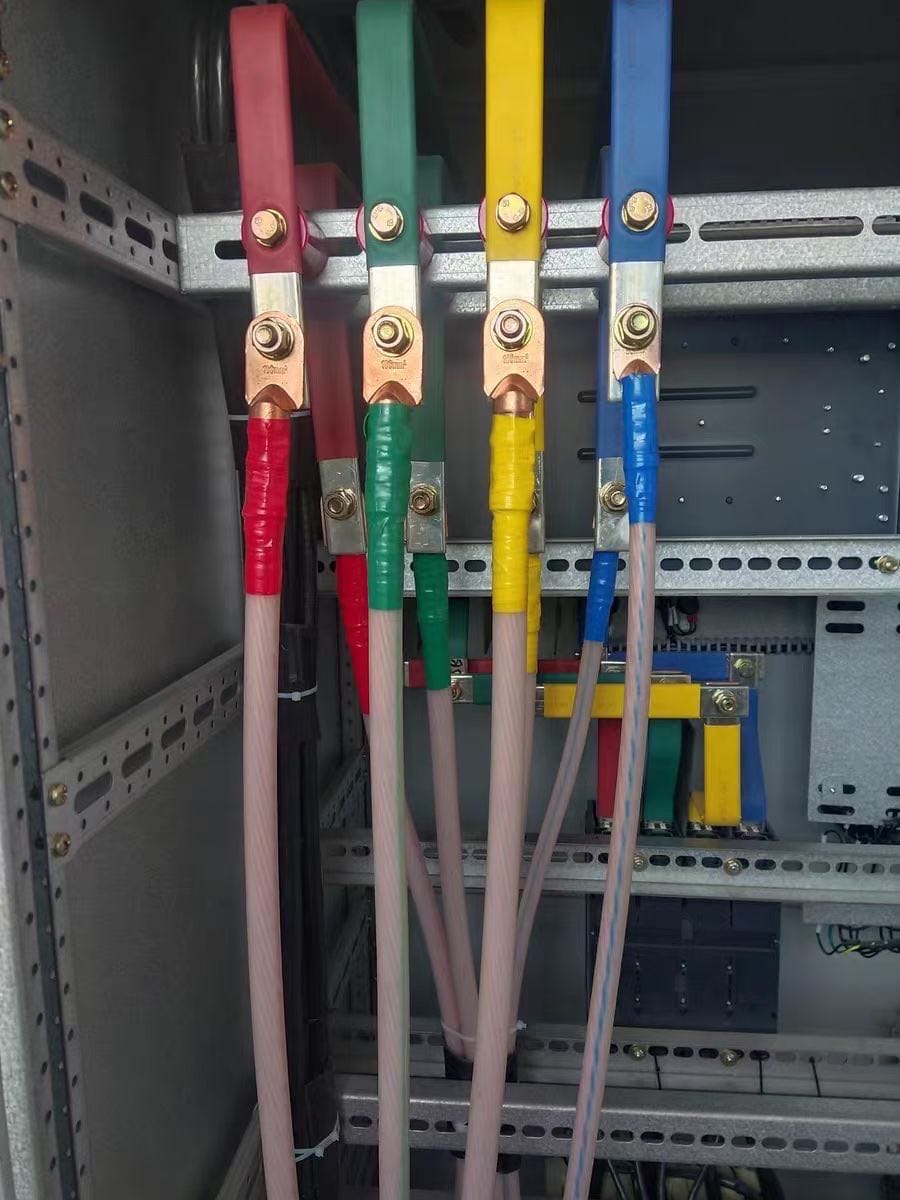

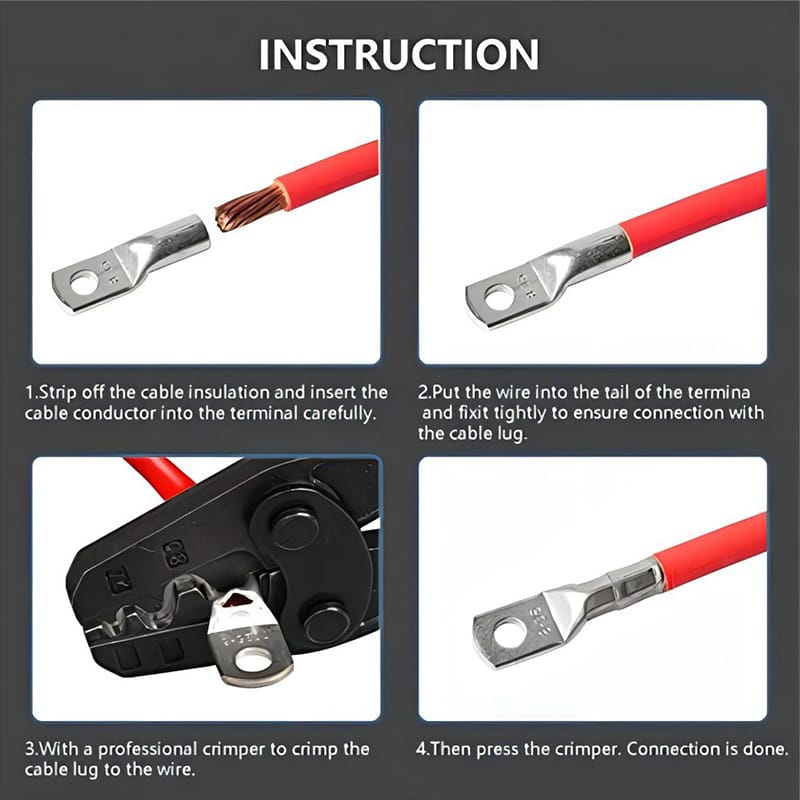

LILIAN copper lugs made by T2 pure copper tube with good electrical performance, resistance to galvanic corrosion, and long service life, they are suitable for connection the copper cable to other electrical equipment, like distribution terminal block,fuse terminal block,solar panels,home applications,etc., .Terminal lugs can be crimped by hydraulic cable lugs crimper tool or hammer style crimper.Our terminal lugs with heavy duty construction improves high temperature durability and closed design seals out the moisture, ensure connection reliability.The ends with high standard flared opening for wire insert more easier.

Send email to us

Product Detail

Product Tags

Material

Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection

Working temperature: -55°C ~ 150°C.

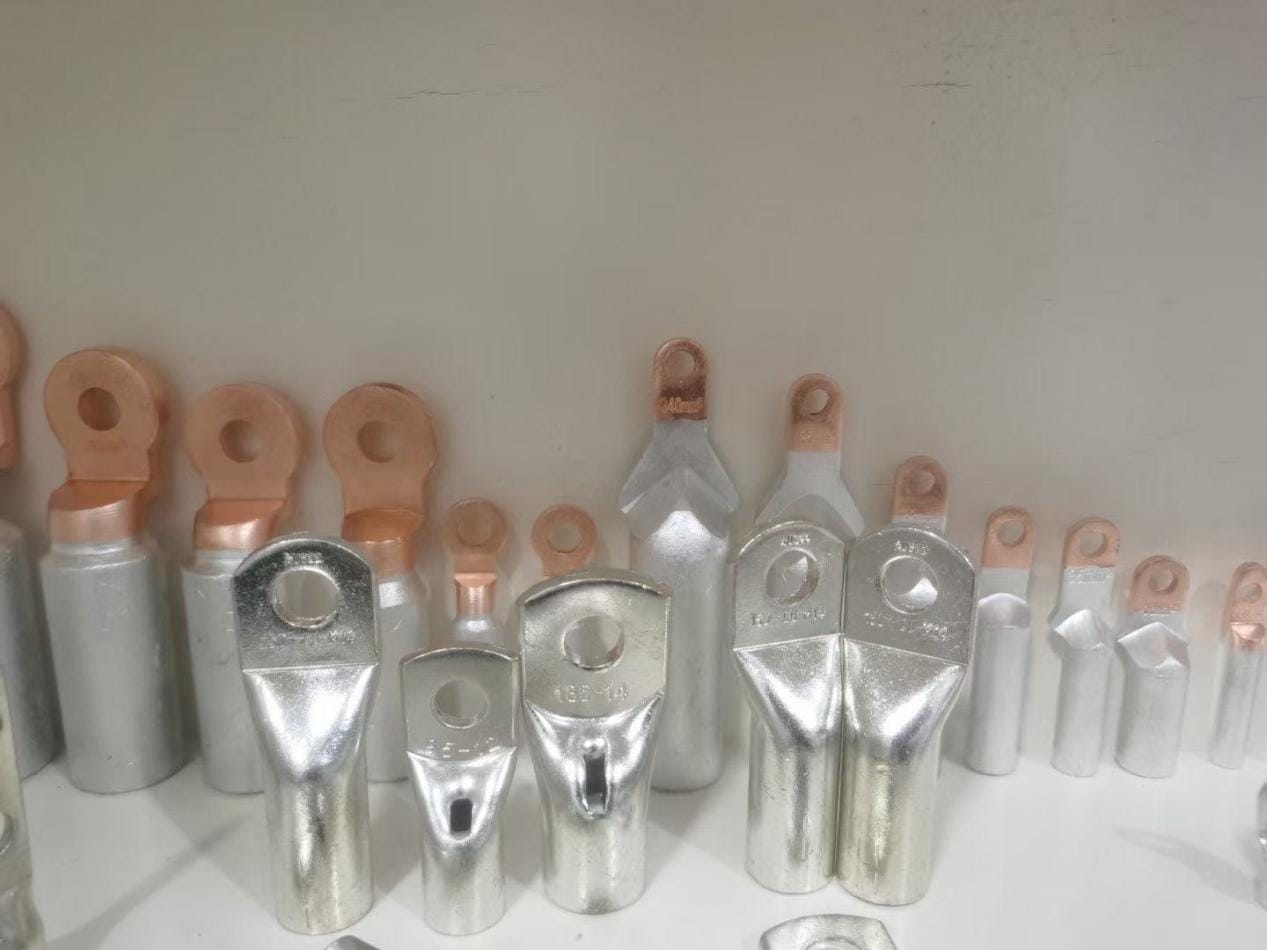

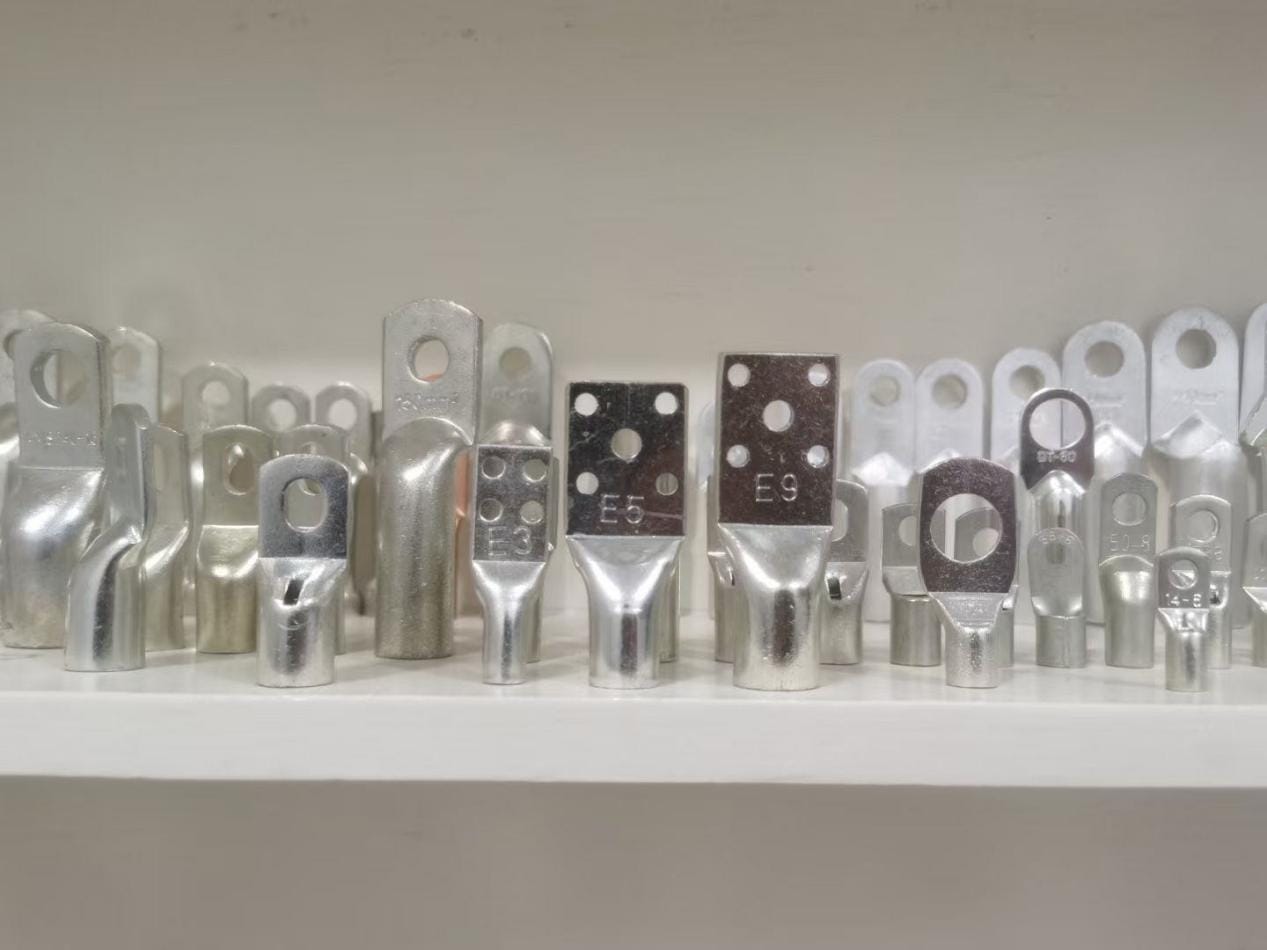

Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

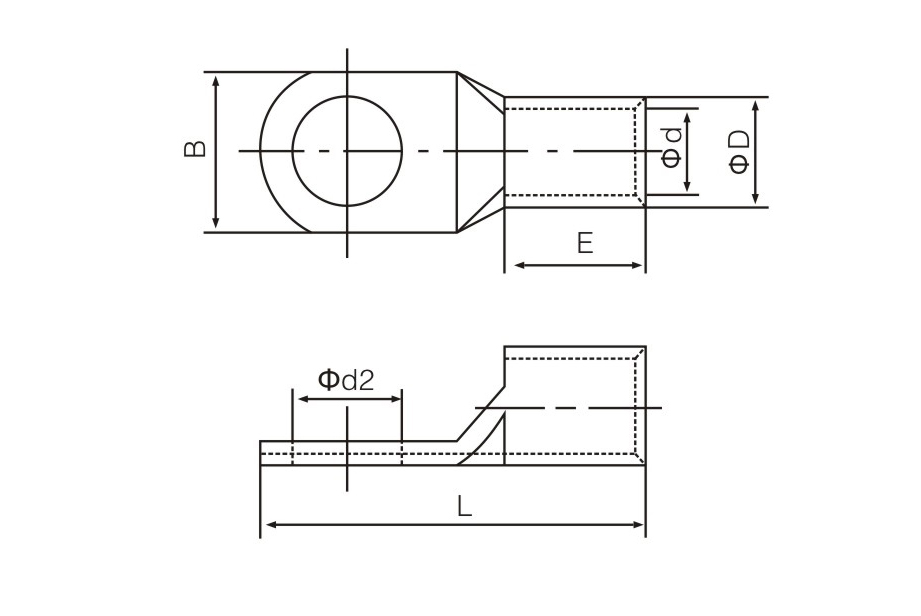

ITEM NO.	Dimension(mm)
ITEM NO.	φd2	B	L	ΦD	Φd	E
SC1.5-4	4.2	8	16	3.7	1.8	5
SC1.5-5	5.2	10	17
SC1.5-6	6.5	10	18
SC2.5-4	4.2	8	18	4	2.4	7
SC2.5-5	5.2	10	20
SC2.5-6	6.5	10	20
SC2.5-8	8.4	12.5	23
SC4-4	4.2	10	20	4.8	3.1	7
SC4-5	5.2	10	20
SC4-6	6.5	10	20
SC4-8	8.4	12.5	23
SC6-4	4.2	10	24	5.5	3.8	9
SC6-5	5.2	10	24
SC6-6	6.5	12	24
SC6-8	8.4	12.5	26
SC6-10	10.5	15	28	6.2	4
SC10-5	5.2	12	25	6.2	4.5	9
SC10-6	6.5	12	25
SC10-8	8.4	12.5	27
SC10-10	10.5	15	29
SC10-12	13	17	31
SC16-5	5.2	12	30	7.1	5.4	12
SC16-6	6.5	12	30
SC16-8	8.4	12.5	30
SC16-10	10.5	16	33
SC16-12	13	17	35
SC25-5	5.2	13	33	8.8	6.8	12
SC25-6	6.5	13	33
SC25-8	8.4	15	33
SC25-10	10.5	18	34
SC25-12	13	18	35
SC25-14	15	20	38
SC35-5	5.2	16	38	10.6	8.2	14
SC35-6	6.5	16	38
SC35-8	8.4	16	38
SC35-10	10.5	18	39
SC35-12	13	19	40.5
SC35-14	15	20	42
SC50-6	6.5	17.8	45	12.4	9.5	16
SC50-8	8.4	17.8	45
SC50-10	10.5	17.8	45
SC50-12	13	20	45
SC50-14	15	22	46
SC50-16	17	24	47
SC70-8	8.4	21	52	14.7	11.2	20
SC70-10	10.5	21	52
SC70-12	13	21	52
SC70-14	15	21	52
SC70-16	17	25	53
SC95-8	8.4	25	58	17.4	13.5	23
SC95-10	10.5	25	58
SC95-12	13	25	58
SC95-14	15	25	58
SC95-16	17	25	58
SC120-8	8.4	28	63
SC120-10	10.5	28	63	19.4	15	22
SC120-12	13	28	63
SC120-14	15	28	63
SC120-16	17	28	63
SC120-20	21	28	63
SC150-8	8.4	30.6	70	21.2	16.5	26
SC150-10	10.5	30.6	70
SC150-12	13	30.6	70
SC150-14	15	30.6	70
SC150-16	17	30.6	70
SC150-20	21	30.6	70
SC185-10	10.5	34	75	23.5	18.5	32
SC185-12	13	34	75
SC185-14	15	34	75
SC185-16	17	34	75
SC185-20	21	34	75
SC240-10	10.5	38.6	90	26.5	21	38
SC240-12	13	38.6	90
SC240-14	15	38.6	90
SC240-16	17	38.6	90
SC240-18	19	38.6	90
SC240-20	21	38.6	90
SC300-10	10.5	43	98	30	23.5	42
SC300-12	13	43	98
SC300-14	15	43	98
SC300-16	17	43	98
SC300-20	21	43	98
SC400-10	10.5	52	110	36.5	28.5	44
SC400-12	13	52	110
SC400-14	15	52	110
SC400-16	17	52	110
SC400-20	21	52	110
SC500-10	10.5	56	120	39	30	48
SC500-12	13	56	120
SC500-14	15	56	120
SC500-16	17	56	120
SC500-20	21	56	120
SC630-10	10.5	65	140	45	35	56
SC630-12	13	65	140
SC630-14	15	65	140
SC630-16	17	65	140
SC630-20	21	65	140
