Lyf Copper Tube Terminals /tubular cable lug copper tube crimping lug
Material
Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
|
ITEM NO. |

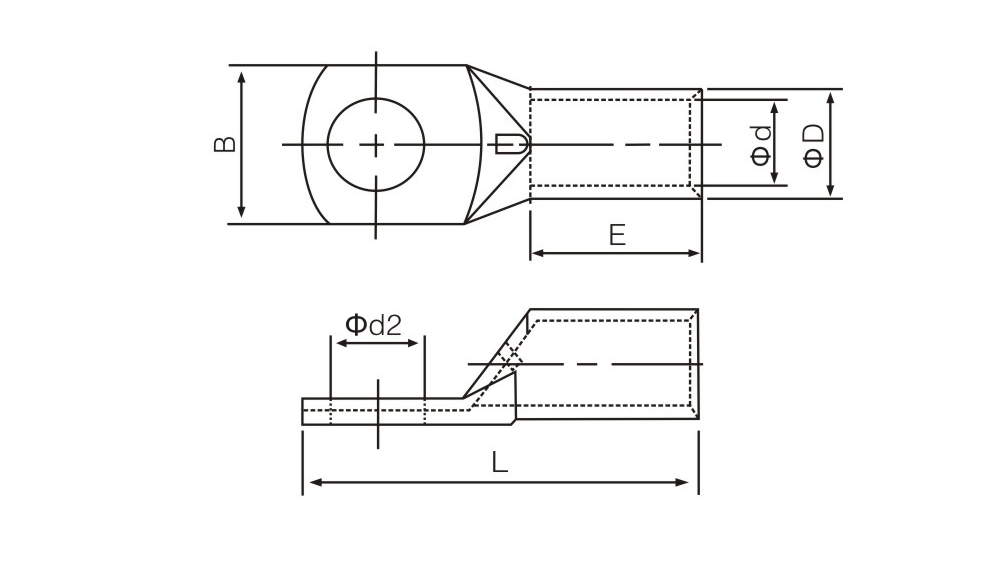

Dimension(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
|
|
LYF10-5 |
5.3 |
11.5 |
28 |
8 |
5 |
9 |
|
LYF10-6 |
6.5 |
11.5 |
28 |
|||
|
LYF10-8 |
8.4 |
13.5 |
32 |
|||
|
LYF10-10 |
10.5 |
16 |
34 |
|||
|
LYF16-6 |
6.5 |
13 |
33 |
9 |
6 |
10 |
|
LYF16-8 |
8.4 |
13 |
33 |
|||
|
LYF16-10 |
10.5 |
16 |
38 |
|||
|
LYF16-12 |
13 |
22 |
47 |
|||
|
LYF25-6 |
6.5 |
16 |
37 |
11 |
8 |
11 |
|
LYF25-8 |
8.4 |
16 |
38 |
|||
|
LYF25-10 |
10.5 |
17 |
42 |
|||
|
LYF25-12 |
13 |
22 |
47 |
|||
|
LYF35-6 |
6.5 |
18 |
44 |
13 |
9 |
14 |
|
LYF35-8 |
8.4 |
18 |
44 |
|||
|
LYF35-10 |
10.5 |
18 |
44 |
|||
|
LYF35-12 |
13 |
22 |
52 |
|||
|
LYF50-6 |
6.5 |
21 |
50 |
14.5 |
11 |
17 |
|
LYF50-8 |
8.4 |
21 |
50 |
|||
|
LYF50-10 |
10.5 |
21 |
50 |
|||
|
LYF50-12 |
13 |
21 |
53 |
|||
|
LYF70-6 |
6.5 |
25 |
55 |
17 |
13 |
20 |
|
LYF70-8 |
8.4 |
25 |
55 |
|||
|
LYF70-10 |
10.5 |
25 |
55 |
|||
|
LYF70-12 |
13 |
25 |
58 |
|||
|
LYF70-16 |
17 |
28 |
64 |
|||
|
LYF95-8 |
8.4 |
29 |
69 |
20 |
15 |
23 |
|
LYF95-10 |
10.5 |
29 |
69 |
|||
|
LYF95-12 |
13 |
29 |
69 |
|||
|
LYF95-16 |
17 |
29 |
69 |
|||
|
LYF120-10 |
10.5 |
32 |
73 |
22 |
17 |
25 |
|
LYF120-12 |
13 |
32 |
73 |
|||
|
LYF120-16 |
17 |
32 |
73 |
|||
|
LYF150-10 |
10.5 |
36 |
80 |
25 |
19 |
30 |
|
LYF150-12 |
13 |
36 |
80 |
|||
|
LYF150-16 |
17 |
36 |
80 |
|||
|
LYF150-20 |
21 |
36 |
87 |
|||
|
LYF185-10 |
10.5 |
39 |
86 |
27 |
21 |
35 |
|
LYF185-12 |
13 |
39 |
86 |
|||
|
LYF185-16 |
17 |
39 |
86 |
|||
|
LYF185-20 |
21 |
39 |
93 |
|||
|
LYF240-10 |
10.5 |
44 |
95 |
30 |
24 |
35 |
|
LYF240-12 |
13 |
44 |
95 |
|||
|
LYF240-16 |
17 |
44 |
95 |
|||
|
LYF240-20 |
21 |
44 |
95 |
|||
|
LYF300-10 |
10.5 |
47 |
114 |
32 |
26 |
42 |
|
LYF300-12 |
13 |
47 |
114 |
|||
|
LYF300-16 |
17 |
47 |
114 |
|||
|
LYF300-20 |
21 |
47 |
114 |
|||
|
LYF300-24 |
26 |
47 |
114 |
|||
|
LYF400-12 |
13 |
54 |
126 |
36 |
30 |
48 |
|
LYF400-16 |
17 |
54 |
126 |
|||
|
LYF400-20 |
21 |
54 |
126 |
|||
|
LYF400-24 |
26 |
54 |
126 |
|||
|
LYF500-20 |
21 |
61 |
134 |
42 |
33 |
47 |
|
LYF500-24 |
26 |
61 |
134 |
|||
|
LYF630-BL |
75 |
180 |
53 |
39 |
68 |
|
|
LYF630-20 |
21 |
75 |
180 |
|||
|
LYF630-24 |
26 |
75 |
180 |
|||
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
