SC(JGA) Copper Lugs Without Checking Hole
Material
Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
|
ITEM NO. |

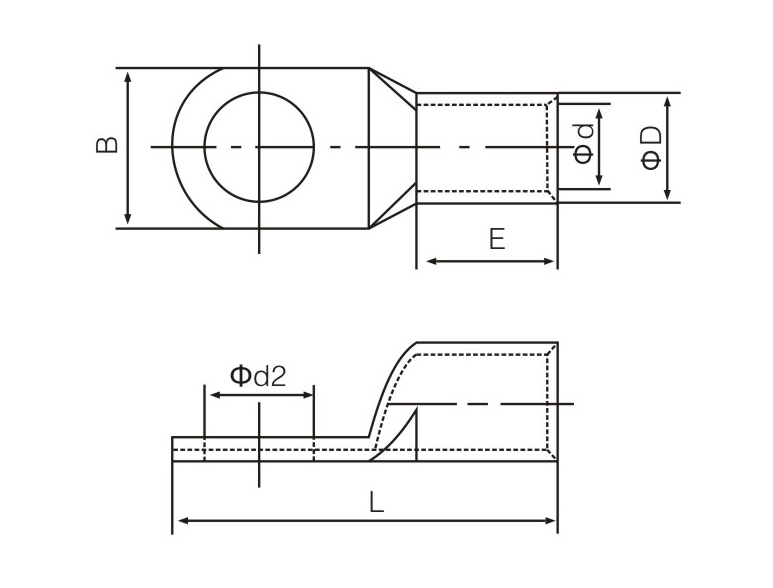

Dimension(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
|
|
SC16-5NH |
4.3 |
7.5 |
18 |
3.1 |
1.9 |
6.5 |
|
SC16-6NH |
5.2 |
8 |
18 |
|||
|
SC16-8NH |
6.5 |
9.2 |
18 |
3.4 |
||
|
SC16-10NH |
4.3 |
8 |
19 |
4 |
2.8 |
7 |
|
SC16-12NH |
5.2 |
8 |
20 |
|||
|
SC25-5NH |
6.5 |
9.2 |
20 |
4 |
2.6 |
|
|
SC25-6NH |
4.3 |
8 |
19.5 |
4.5 |
3.2 |
7.5 |
|
SC25-8NH |
5.2 |
8 |
20.5 |
|||
|
SC25-10NH |
6.5 |
9.2 |
22 |
|||
|
SC25-12NH |
8.5 |
12 |
23.5 |
4.8 |
||
|
SC25-14NH |
5.2 |
9.2 |
22 |
5.1 |
3.7 |
8 |
|
SC35-5NH |
6.5 |
9.8 |
23 |
|||
|
SC35-6NH |
8.5 |
12 |
24 |
5.3 |
||
|
SC35-8NH |
10.3 |
12.8 |
24 |
|||
|
SC35-10NH |
5.2 |
10.3 |
24 |
6.1 |
4.5 |
9 |
|
SC35-12NH |
6.5 |
10.3 |
24 |
|||
|
SC35-14NH |
8.5 |
12 |
25 |
|||
|
SC50-6NH |
10.3 |
13.2 |
26.5 |
6.3 |
||
|
SC50-8NH |
6.5 |
11 |
27.5 |
7.3 |
5.7 |
11 |
|
SC50-10NH |
8.5 |
12.5 |
29.5 |
|||
|
SC50-12NH |
10.5 |
14 |
30 |
7.5 |
||
|
SC50-14NH |
6.5 |
13.1 |
32.5 |
9 |
7.2 |
13.5 |
|
SC50-16NH |
8.5 |
13.1 |
33 |
|||
|
SC70-8NH |
10.5 |
14.5 |
34 |
|||
|
SC70-10NH |
13 |
16.5 |
37 |
|||
|
SC70-12NH |
6.5 |
15.8 |
36 |
10.8 |
8.5 |
14.5 |
|
SC70-14NH |
8.5 |
15.8 |
37 |
|||
|
SC70-16NH |
10.5 |
15.8 |
38 |
|||
|
SC95-8NH |
13 |
17.4 |
38 |
|||
|
SC95-10NH |
6.5 |
18.1 |
41 |
12.5 |
9.8 |
17 |
|
SC95-12NH |
8.5 |
18.1 |
42.5 |
|||
|
SC95-14NH |
10.5 |
18.2 |
44 |
|||
|
SC95-16NH |
13 |
18.2 |
44 |
|||
|
SC120-8NH |
6.5 |
21 |
48.5 |
14.5 |
11.5 |
19.5 |
|
SC120-10NH |
8.5 |
21 |
48.5 |
|||
|
SC120-12NH |
10.5 |
21 |
50 |
|||
|
SC120-14NH |
13 |
21 |
50 |
|||
|
SC120-16NH |
15 |
21 |
50 |
|||
|
SC120-20NH |
17 |
23 |
50 |
|||
|
SC150-8NH |
8.5 |
24.8 |
57 |
17 |
13.7 |
23.5 |
|
SC150-10NH |
10.5 |
24.8 |
57 |
|||
|
SC150-12NH |
13 |
24.8 |
57 |
|||
|
SC150-14NH |
15 |
24.8 |
57 |
|||
|
SC150-16NH |
17 |
26 |
57 |
|||
|
SC150-20NH |
8.5 |
27.6 |
63 |
19 |
15 |
25.5 |
|
SC185-10NH |
10.5 |
27.6 |
||||
|
SC185-12NH |
13 |
27.6 |
||||
|
SC185-14NH |
15 |
27.6 |
||||
|
SC185-16NH |
17 |
27.6 |
||||
|
SC185-20NH |
21 |
27.6 |
||||
|
SC240-10NH |
8.5 |
30.5 |
70.5 |
21 |
16.7 |
29 |
|
SC240-12NH |
10.5 |
30.5 |
||||
|
SC240-14NH |
13 |
30.5 |
||||
|
SC240-16NH |
15 |
30.5 |
||||
|
SC240-20NH |
17 |
30.5 |
||||
|
SC300-10NH |
21 |
30.5 |
||||
|
SC300-12NH |
10.5 |
34.5 |
77 |
23.5 |
19.5 |
32 |
|
SC300-14NH |
13 |
34.5 |
||||
|
SC300-16NH |
15 |
34.5 |
||||
|
SC300-20NH |
17 |
34.5 |
||||
|
SC400-10NH |
21 |
34.5 |
||||
|
SC400-12NH |
10.5 |
38 |
90.5 |
26 |
21 |
39 |
|
SC400-14NH |
13 |
38 |
||||
|
SC400-16NH |
15 |
38 |
||||
|
SC400-20NH |
17 |
38 |
||||
|
SC500-10NH |
19 |
38 |
||||
|
SC500-12NH |
21 |
38 |
||||
|
SC500-14NH |
10.5 |
43.7 |
100 |
30 |
24 |
43.5 |
|
SC500-16NH |
13 |
43.7 |
||||
|
SC500-20NH |
15 |
43.7 |
||||
|
SC630-10NH |
17 |
43.7 |
||||
|
SC630-12NH |
21 |
43.7 |
||||
|
SC630-14NH |
10.5 |
49.5 |
110 |
34 |
27 |
46 |
|
SC630-16NH |
13 |
49.5 |
||||
|
SC630-20NH |
15 |
49.5 |
||||
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
