SC(JGB) Copper Lugs With Flared Barrel
Material
Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
|

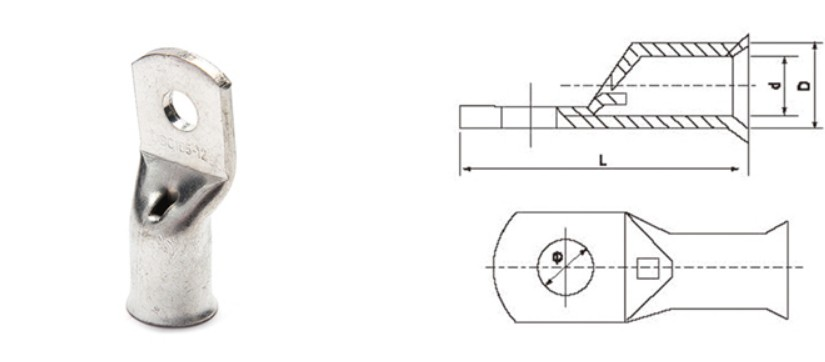

Item No |
Dimension(mm) |
|
|||
|
φ |
D |
d |
L |
|
|
|
SC(JGB)-1.5 |
φ4.2,φ5.2 |
3.5 |
1.8 |
18 |
|
|
SC(JGB)-2.5 |
φ4.2,φ5.2,φ6.2 |
4 |
2.5 |
19 |
|
|
SC(JGB)-4 |
φ5.2,φ6.2 |
4.8 |
3.1 |
21 |
|
|
SC(JGB)-6 |
φ5.2,φ6.2,φ8.2 |
5.5 |
3.8 |
24 |
|
|
SC(JGB)-10 |
φ6.2,φ8.2 |
6.8 |
4.8 |
25.5 |
|
|
SC(JGB)-16 |
φ6.2,φ8.2,Φ10.5 |
7.5 |
5.5 |
30.5 |
|
|
SC(JGB)-25 |
φ6.2,φ8.2,Φ10.5 |
9 |
7 |
34 |
|
|
SC(JGB)-35 |
φ6.2,φ8.2,Φ10.5,Φ12.5 |
10.5 |
8.2 |
38 |
|
|
SC(JGB)-50 |
φ8.2,Φ10.5,Φ12.5 |
12.5 |
9.8 |
45 |
|
|
SC(JGB)-70 |
φ8.2,Φ10.5,Φ12.5 |
14.5 |
11.5 |
50 |
|
|
SC(JGB)-95 |
Φ10.5,Φ12.5 |
17.5 |
13.8 |
55.5 |
|
|
SC(JGB)-120 |
φ12.5,φ16.5 |
19.5 |
15.5 |
63 |
|
|
SC(JGB)-150 |
φ12.5,φ16.5 |
21 |
16.5 |
71 |
|
|
SC(JGB)-185 |
φ16.5 |
23.5 |
18.8 |
78 |
|
|
SC(JGB)-240 |
φ16.5 |
26.5 |
21 |
92 |
|
|
SC(JGB)-300 |
φ16.5,φ20.5 |
30 |
24 |
102 |
|
|
SC(JGB)-400 |
φ16.5,φ20.5 |
34 |
26.5 |
113 |
|
|
SC(JGB)-500 |
φ16.5,φ20.5 |
38 |
30 |
123 |
|
|
SC(JGB)-630 |
φ20.5 |
45 |
35 |
135 |
|
|
SC(JGB)-800 |
φ22.5 |
50 |
39 |
170 |
|
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
