Screw on wire connector with highly cost effective

Short Description:

LILIAN screw on wire connectors are suitable to connected 2 or more wires without crimping .

UL 486C Listed and CSA 22.2 No.188 Certified
Tough thermoplastic, UL 94V-2 flame-retardant shell rated for 105°C(221°F)
Zinc plated square wire spring
Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs
Five color-coded to industry standards.
No pre-twsting required, push stripped conductors into connector and screw on.

Send email to us

Product Detail

Product Tags

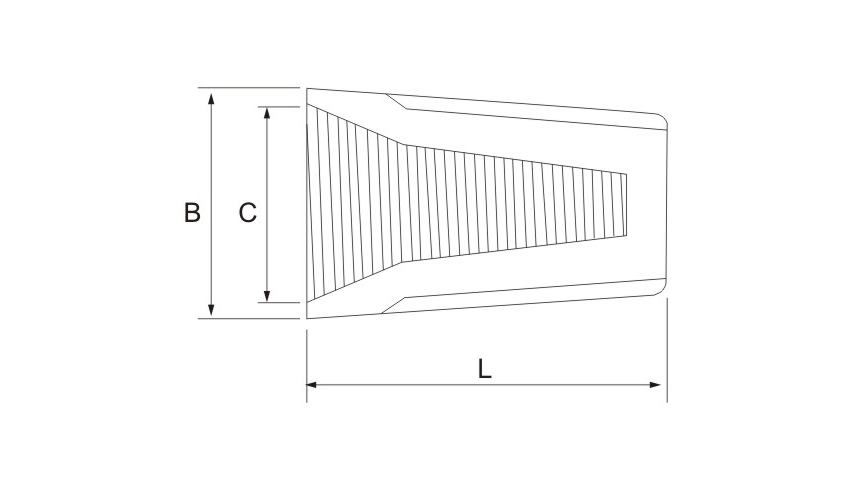

ITEM NO.	cable arrange	Dimension(mm)			color	pcs/pack
ITEM NO.	cable arrange	B	C	L	color	pcs/pack
SP1	min0.75×1+0.5×1 max1.5×2	8.5	6.7	15.0	gray	1000pcs/pack
SP2	min0.75×3 max1.5×3	10.1	7.4	17.5	bule	1000pcs/pack
SP3	min0.75×3 max1.5×3+1×1	12.6	9.9	22.1	orange	500pcs/pack
SP4	min0.25×1+0.75×1 max2.5×4+0.75×1	13.7	11.0	24.5	yellow	500pcs/pack
SP6	min0.25×2 max6×2+4×2	16.0	13.0	26.5	red	200pcs/pack

what products we are producing

wps_doc_1

How to use the insulated terminal

wps_doc_2

wps_doc_3

lnstallation Precautions

1.The screw must be tightened.

2.The cable and copper lug must be inserted in place and pressed with crimping tools.

wps_doc_4
