SV fork spade insulated terminal lug
|
ITEM NO. |
BOLT NO. |
DIA.OF BOLT |

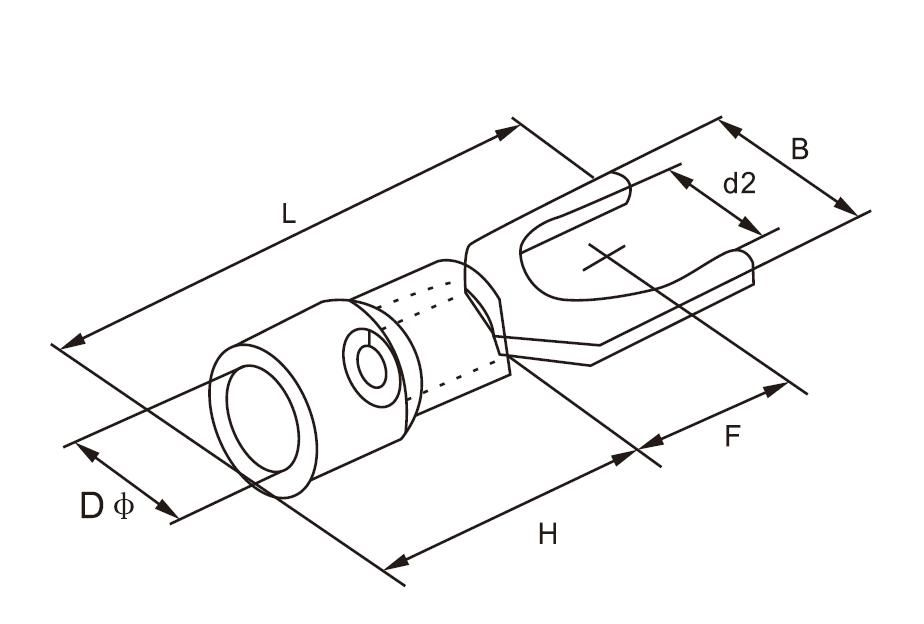

DIMENSION(MM) |
COLOR |
SPECIFICATION |
||||
|
d2(mm) |
B |
D |
F |
H |
L |
||||
|
SV 1.25-3 |
#4 |
3.2 |
5.7 |
4.3 |
6.5 |
10 |
21.2 |
Red |
Conductor section: 0.5-1.5mm2 A.W.G.: 22-16 Max. Current: I Max.=19A Thickness: 0.7mm |
|
SV 1.25-3.5S |
#6 |
3.7 |
5.7 |
6.5 |
21.2 |
||||
|
SV 1.25-3.5L |
#6 |
3.7 |
6.4 |
6.5 |
21.2 |
||||
|
SV 1.25-4S |
#8 |
4.3 |
6.4 |
6.5 |
21.2 |
||||
|
SV 1.25-4M |
#8 |
4.3 |
7.2 |
6.5 |
21.2 |
||||
|
SV 1.25-4L |
#8 |
4.3 |
8.1 |
6.5 |
21.2 |
||||
|
SV 1.25-5S |
#10 |
5.3 |
8.1 |
6.5 |
21.2 |
||||
|
SV 1.25-5L |
#10 |
5.3 |
9.5 |
6.5 |
21.2 |
||||
|
SV 1.25-6S |
1/4 |
6.5 |
9.5 |
6.5 |
21.2 |
||||
|
SV 1.25-6L |
1/4 |
6.5 |
12.0 |
11.0 |
27.2 |
||||
|
SV 1.25-8 |
5/16 |
8.5 |
14.0 |
12.5 |
29.0 |
||||
|
SV 2-3 |
#4 |
3.2 |
5.7 |
4.9 |
6.5 |
10 |
21.2 |
Blue |
Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max. Current: I Max.=27A Thickness: 0.8mm |
|
SV 2-3.5S |
#6 |
3.7 |
5.7 |
6.5 |
21.2 |
||||
|
SV 2-3.5L |
#6 |
3.7 |
6.4 |
6.5 |
21.2 |
||||
|
SV 2-4S |
#8 |
4.3 |
6.4 |
6.5 |
21.2 |
||||
|
SV 2-4M |
#8 |
4.3 |
7.2 |
6.5 |
21.2 |
||||
|
SV 2-4L |
#8 |
4.3 |
8.1 |
6.5 |
21.2 |
||||
|
SV 2-5S |
#10 |
5.3 |
8.1 |
6.5 |
21.2 |
||||
|
SV 2-5L |
#10 |
5.3 |
9.5 |
6.5 |
21.2 |
||||
|
SV 2-6S |
1/4 |
6.5 |
9.5 |
6.5 |
21.2 |
||||
|
SV 2-6L |
1/4 |
6.5 |
12.0 |
11.0 |
27.2 |
||||
|
SV 2-8 |
5/16 |
8.5 |
14.0 |
12.5 |
29.0 |
||||
|
SV 3.5-3.5 |
#4 |
3.7 |
5.7 |
6.2 |
7.0 |
12.5 |
24.8 |
Black |
Conductor section:2.5-4mm2 A.W.G.: 14-12 Max. Current: I Max.=37A Thickness: 1.0mm |
|
SV 3.5-4 |
#8 |
4.3 |
8.0 |
7.0 |
24.8 |
||||
|
SV 3.5-5S |
#10 |
5.3 |
8.0 |
7.0 |
24.8 |
||||
|
SV 3.5-6L |
1/4 |
6.5 |
12.0 |
12.1 |
28.0 |
||||
|
SV 3.5-6S |
1/4 |
6.5 |
9.0 |
7.5 |
25.2 |
||||
|
SV 5.5-3.5 |
#6 |
3.7 |
8.3 |
6.7 |
7.5 |
12.5 |
25.2 |
Yellow |
Conductor section:4-6mm2 A.W.G.: 12-10 Max. Current: I Max.=48A Thickness: 1.0mm |
|
SV 5.5-4S |
#8 |
4.3 |
8.3 |
7.5 |
25.2 |
||||
|
SV 5.5-4L |
#8 |
4.3 |
9.0 |
7.5 |
25.2 |
||||
|
SV 5.5-5 |
#10 |
5.3 |
9.0 |
7.5 |
25.2 |
||||
|
SV 5.5-6S |
1/4 |
6.5 |
9.0 |
7.5 |
25.2 |
||||
|
SV 5.5-6L |
1/4 |
6.5 |
12.0 |
12.0 |
31.2 |
||||
|
SV 5.5-8 |
5/16 |
8.5 |
14.0 |
11.5 |
30.0 |
||||
what products we are producing
How to use the insulated terminal
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
