T90°Copper Tube Terminals Copper Lugs
Material
Copper cable lugs are made of 99.9% pure copper rod with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.

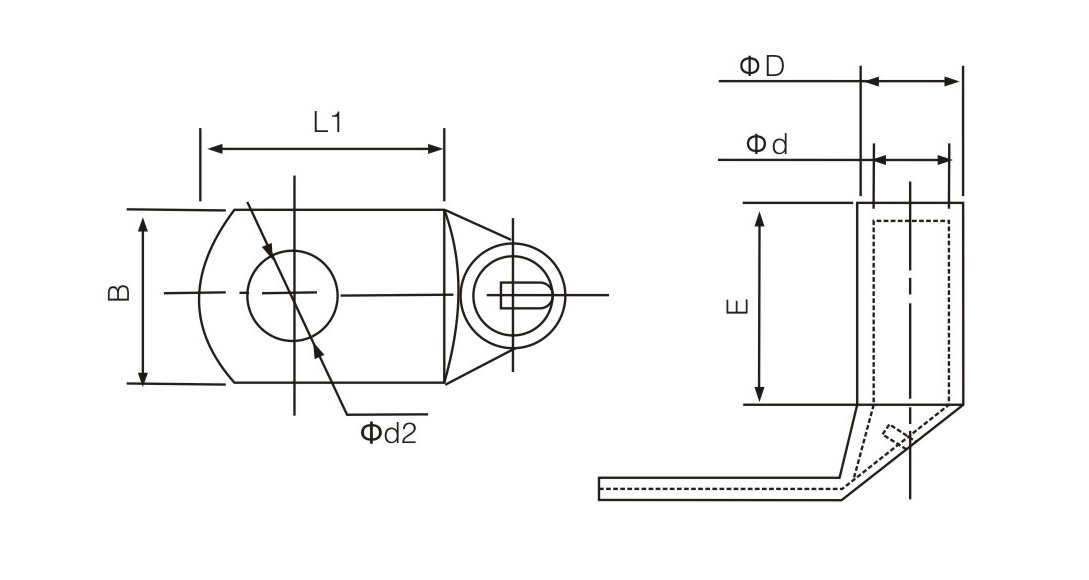

G Type 90 Degree
|
ITEM NO. |
Dimension(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
|
|
T90-10/6 |
6.4 |
11.9 |
12.5 |
6.9 |
4.7 |
10.5 |
|
T90-10/8 |
8.3 |
13.5 |
15.5 |
6.9 |
||
|
T90-16/6 |
6.4 |
11.9 |
12 |
7.8 |
5.6 |
11 |
|
T90-16/8 |
8.3 |
13.5 |
15.5 |
7.8 |
||
|
T90-25/8 |
8.3 |
14 |
16 |
9.5 |
7.1 |
13 |
|
T90-25/10 |
10.5 |
16 |
19 |
9.5 |
||
|
T90-35/8 |
8.3 |
16.5 |
18 |
11 |
8.2 |
16 |
|
T90-35/10 |
10.5 |
16.5 |
22 |
11 |
||
|
T90-50/10 |
10.5 |
17.9 |
22 |
12.5 |
9.5 |
19 |
|
T90-50/12 |
13 |
17.9 |
22 |
12.5 |
||
|
T90-70/10 |
10.5 |
21.5 |
22 |
15 |
11.5 |
21 |
|
T90-70/12 |
13 |
21.5 |
22 |
15 |
||
|
T90-95/14 |
14.5 |
24.7 |
33 |
17 |
13.5 |
24 |
|
T90-95/16 |
16.5 |
24.7 |
33 |
17 |
||
|
T90-120/14 |
14.5 |
28.9 |
33 |
20 |
15.6 |
27 |
|
T90-120/16 |
16.5 |
28.9 |
33 |
20 |
||
|
T90-150/14 |
14.5 |
30.4 |
33 |
21 |
16.5 |
32 |
|
T90-150/16 |
16.5 |
30.4 |
33 |
21 |
||
|
T90-185/16 |
16.5 |
34 |
35 |
23.6 |
18.4 |
34 |
|
T90-240/16 |
16.5 |
38.5 |
35 |
26.4 |
21.2 |
38 |
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
