TT Copper Tube Terminals With Bell-Mouth
Material
Copper cable lugs are made of 99.9% pure copper tube with tinned coating for corrosion protection
Working temperature: -55°C ~ 150°C.
Cable lugs type: copper cable lug,copper tinned cable lug,aluminum cable lug,bimetallic lugs,mechanical connectors and lugs.
|

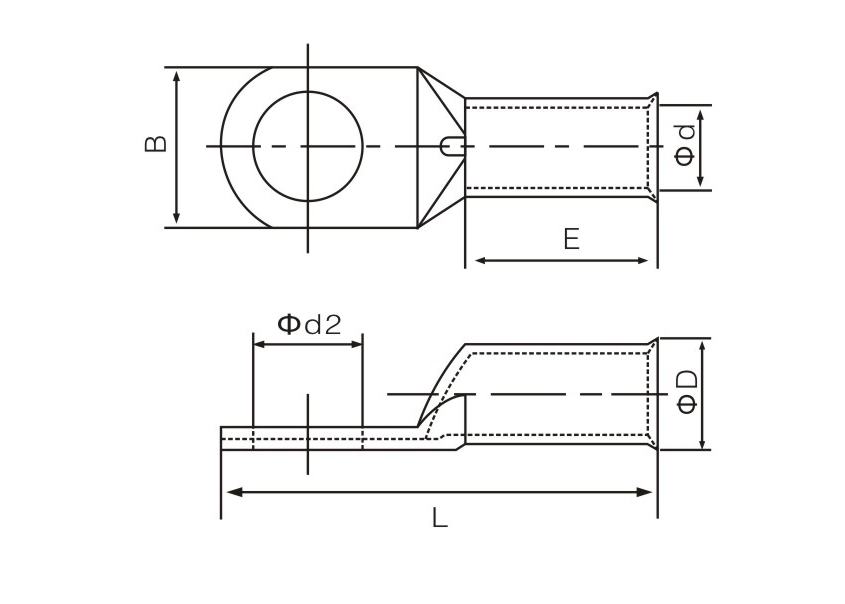

ITEM NO. |
Dimension(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
|
|
TT10-6 |
6.4 |
11.9 |
28 |
6.9 |
4.7 |
12 |
|
TT10-8 |
8.3 |
13.5 |
31 |
|||
|
TT16-6 |
6.4 |
11.9 |
33 |
7.8 |
5.6 |
17 |
|
TT16-8 |
8.3 |
13.5 |
37 |
|||
|
TT16-10 |
10.5 |
16 |
38 |
|||
|
TT25-8 |
8.3 |
14 |
39 |
9.5 |
7.1 |
18 |
|
TT25-10 |
10.5 |
16 |
42 |
|||
|
TT35-8 |
8.3 |
16.5 |
42 |
11 |
8.2 |
19 |
|
TT35-10 |
10.5 |
16.5 |
46 |
|||
|
TT50-10 |
10.5 |
17.9 |
51 |
12.5 |
9.5 |
22 |
|
TT50-12 |
13 |
17.9 |
51 |
|||
|
TT70-10 |
10.5 |
22 |
54 |
15 |
11.5 |
22 |
|
TT70-12 |
13 |
22 |
54 |
|||
|
TT95-14 |
14.5 |
24.7 |
72 |
17 |
13.5 |
27 |
|
TT95-16 |
16.5 |
24.7 |
72 |
|||
|
TT120-14 |
14.5 |
28.9 |
74 |
20 |
15.6 |
29 |
|
TT120-16 |
16.5 |
28.9 |
74 |
|||
|
TT150-14 |
14.5 |
30.4 |
84 |
21 |
16.5 |
38 |
|
TT150-16 |
16.5 |
30.4 |
84 |
|||
|
TT185-16 |
16.5 |
34 |
92 |
23.6 |
18.4 |
42 |
|
TT240-16 |
16.5 |
38.5 |
98 |
26.4 |
21.2 |
45 |
|
S-TT-6/4 |
4.3 |
10.3 |
25 |
5.5 |
3.8 |
11 |
|
S-TT-6/5 |
5.3 |
10.3 |
25 |
|||
|
S-TT-6/6 |
6.4 |
10.3 |
26 |
|||
|
S-TT-6/8 |
8.3 |
14 |
29 |
|||
|
S-TT-10/4 |
4.3 |
11.9 |
26.5 |
6.8 |
4.7 |
11.5 |
|
S-TT-10/5 |
5.3 |
11.9 |
27 |
|||
|
S-TT-10/6 |
6.4 |
11.9 |
28.5 |
|||
|
S-TT-10/8 |
8.3 |
15 |
31.5 |
|||
|
S-TT-10/10 |
10.5 |
18 |
35.5 |
|||
|
S-TT-16/5 |
5.3 |
11.9 |
32 |
7.8 |
5.6 |
16.5 |
|
S-TT-16/6 |
6.4 |
11.9 |
34 |
|||
|
S-TT-16/8 |
8.3 |
15 |
36.5 |
|||
|
S-TT-16/10 |
10.5 |
18 |
40 |
|||
|
S-TT-25/6 |
6.4 |
13.5 |
36 |
9.4 |
7.1 |
18 |
|
S-TT-25/8 |
8.3 |
15 |
39 |
|||
|
S-TT-25/10 |
10.5 |
18 |
44 |
9.4 |
7.1 |
18 |
|
S-TT-25/12 |
13 |
21 |
46 |
|||
|
S-TT-35/6 |
6.4 |
16 |
37 |
11.3 |
8.7 |
19 |
|
S-TT-35/8 |
8.3 |
16 |
38 |
16 |
||
|
S-TT-35/10 |
10.5 |
19 |
45 |
19 |
||
|
S-TT-35/12 |
13 |
21 |
47 |
|||
|
S-TT-50/6 |
6.4 |
17.9 |
44 |
12.6 |
9.8 |
22 |
|
S-TT-50/8 |
8.3 |
17.9 |
46 |
|||
|
S-TT-50/10 |
10.5 |
20 |
50 |
|||
|
S-TT-50/12 |
13 |
21 |
54 |
|||
|
S-TT-70/8 |
8.3 |
21.5 |
49 |
14.7 |
11.5 |
23 |
|
S-TT-70/10 |
10.5 |
21.5 |
55 |
25 |
||
|
S-TT-70/12 |
13 |
21.5 |
55 |
23 |
||
|
S-TT-95/8 |
8.3 |
24.7 |
58 |
16.9 |
13.5 |
30 |
|
S-TT-95/10 |
10.5 |
24.7 |
61 |
|||
|
S-TT-95/12 |
13 |
24.7 |
63 |
|||
|
S-TT-95/14 |
14.5 |
24.7 |
67 |
|||
|
S-TT-95/16 |
16.5 |
27 |
70 |
|||
|
S-TT-120/10 |
10.5 |
28.9 |
62 |
19.9 |
15.6 |
30.5 |
|
S-TT-120/12 |
13 |
28.9 |
67 |
|||
|
S-TT-120/14 |
14.5 |
28.9 |
74 |
|||
|
S-TT-120/16 |
16.5 |
28.9 |
74 |
|||
|
S-TT-150/10 |
10.5 |
30.4 |
75 |
20.9 |
16.5 |
38 |
|
S-TT-150/12 |
13 |
30.4 |
81 |
|||
|
S-TT-150/14 |
14.5 |
30.4 |
85 |
|||
|
S-TT-150/16 |
16.5 |
30.4 |
85 |
|||
|
S-TT-185/12 |
13 |
34 |
87 |
23.7 |
18.8 |
41 |
|
S-TT-185/14 |
14.5 |
34 |
91 |
|||
|
S-TT-185/16 |
16.5 |
34 |
92 |
|||
|
S-TT-240/12 |
13 |
38.4 |
93 |
26.2 |
21.2 |
45 |
|
S-TT-240/14 |
14.5 |
38.4 |
97 |
|||
|
S-TT-240/16 |
16.5 |
38.4 |
98 |
|||
|
S-TT-240/20 |
21 |
38.4 |
98 |
|||
|
S-TT-300/14 |
14.5 |
41.7 |
100 |
28.6 |
23.4 |
49 |
|
S-TT-300/16 |
16.5 |
41.7 |
106 |
|||
|
S-TT-400/16 |
16.5 |
47.8 |
115 |
32.8 |
26.8 |
54 |
lnstallation Precautions
1.The screw must be tightened.
2.The cable and copper lug must be inserted in place and pressed with crimping tools.
FAQ
1. Q: Can you provide samples ? Are the samples free ?
A: Yes , we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking .
But you have to pay for the shipping cost . If you need many items, or need more qty for each item,
we will charge for the samples.
2. Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,,UPS,TNT,EMS.That’s a
Door to Door service .
For big packages, we will send them by Air or By sea. We will use good packing and ensure
the safety.We will be responsible to any product damage caused on delivery.
3.Q：could i put my own logo on it?
A:Sure,customers’ logo can be printed or put on the items.
4.Q:How about the certificates?
A:ISO9001,CE，ROHS,TUL.UL
