Wire Terminal Connector FDFD Type

Short Description:

LILIAN Cold crimping wire terminal are also named crimping wire terminal or wire terminal connector.Terminal connector are used to terminate stranded wires,creating a quality,reliable connection by ensuring each wire strand conducts current when properly crimped.Especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent,under stress or in a vibration environment.Twin ferrule designs allow two individual stranded conductors to be connected to the same termination,most beneficial in jumpering or other similar applications.


Product Detail

Product Tags

Material of crimping wire terminal

Tin plated copper,PVC

A
ITEM NO. NAME TAB

(MM)

DIMENSION(MM) COLOUR SPECIFICATION

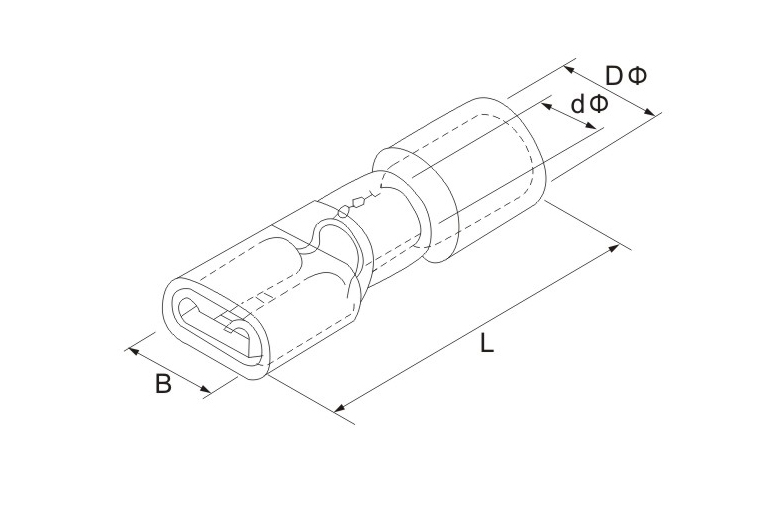

B D d L W
FDFD 1.25-110(5) 0.5X2.8 3.2 4 1.7 19 6.2

Red

Conductor section:0.5-1.5mm2

A.W.G.: 22-16

Max Current:I max.=10A

FDFD 1.25-187(5) 0.5X4.75 5 20 7.8
FDFD 1.25-187(8) 0.8X4.75 5 20 7.8
FDFD 1.25-250 0.8X6.3 6.6 22.5 9.3
FDFD 2-110(5) 0.5X2.8 3.2 4.5 2.3 19 6.2

Blue

Conductor section:1.5-2.5mm2

A.W.G.: 16-14

Max Current:I max.=15A

FDFD 2-187(5) 0.5X4.75 5 20 7.8
FDFD 2-187(8) 0.8X4.75 5 20 7.8
FDFD 2-250 0.8X6.3 6.6 23 9.3
FDFD 5.5-187(5) 0.5X4.8 5 5.7 3.4 23 7.8 Yellow Conductor section:4-6mm2

A.W.G.: 12-10

Max Current:I max.=24A

FDFD 5.5-250 0.8X6.3 6.6 23 9.3
FDFD 5.5-375 1.2X9.4 10.9 30 13
